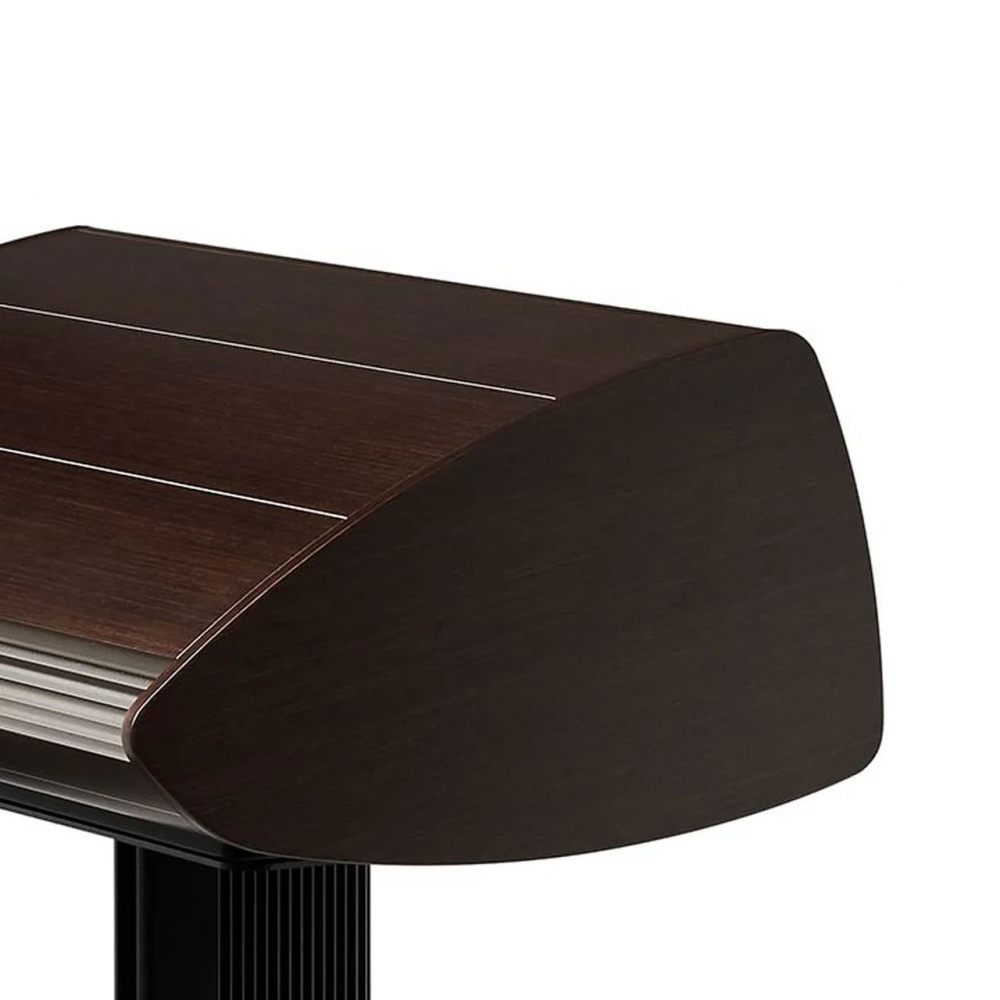

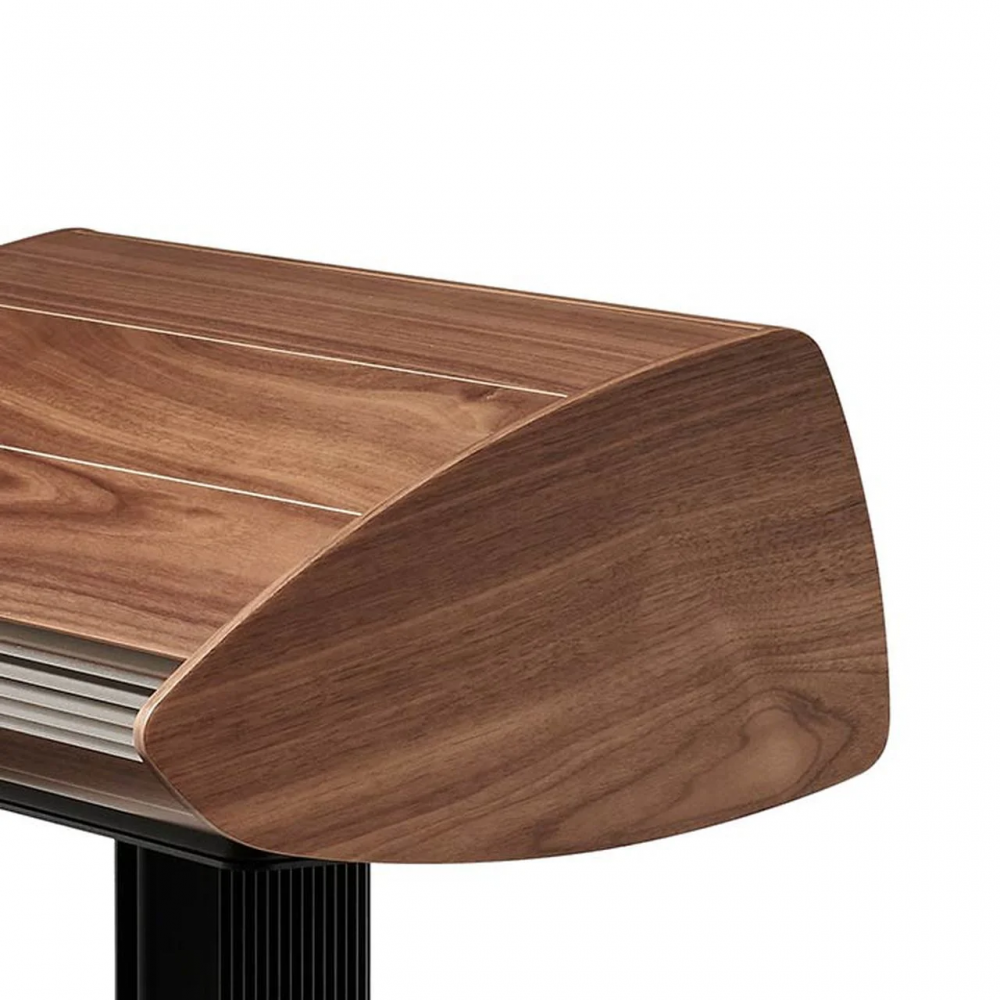

ORGANIC SHAPE

The lack of flat and parallel walls improves enclosure performance and maintains the typical asymmetrical Lute shape of first generation Olympica.The asymmetrical shape of the cabinet is an original design concept that allows versatile positioning of the speakers to tune the bass response in any room.Inspired by nature, the lines follow the flow of a circular spiral motion, achieving a more organic cabinet structure.No longer just a functional element added to handle airflow, the reflex duct is now fully integrated into the cabinet, further improving the speed and transparency of sound.

TECHNICAL SPECIFICATIONS

SYSTEM

2 way, full para-aperiodic vented box “Stealth Ultraflex”, stand mount loudspeaker system.



LOUDSPEAKERS

Tw: H28 XTR3. Neodymium “cup design” motor system with DAD™, Ø 28 mm
Mw: 2 x MW15 XTR2-08, CCAW wire on a “eddy current free” voice coil, Ø 150 mm



CROSSOVER

1.550 Hz



FREQUENCY RESPONSE

45 Hz – 35.000 Hz



SENSITIVITY

90 dB SPL (2.83V/1 m)



NOMINAL IMPEDANCE

4 ohm



SUGGESTED AMPLIFIER POWER OUTPUT

35 W – 250 W, without clipping



DIMENSIONS (HXWXD)

241,6 (688,6 stand included) x 616 x 397,8 mm
9.5 (27.1 stand included) x 24.2 x 15.6 in



WEIGHT

18 kg - net weight (26 Kg stand included)
39.6 - net weight (57.2 lb stand included)
