An icon born from The Reference

A suite of class-leading technological innovations drawn from The Reference for exceptional acoustic performance.

Metamaterial Absorption Technology

Absorbs 99% of unwanted sound for pure and natural sound.

12^th generation Uni-Q^®

Acts as a single point source to enlarge the 'sweet spot' and disperse sound more evenly.

Listen your way

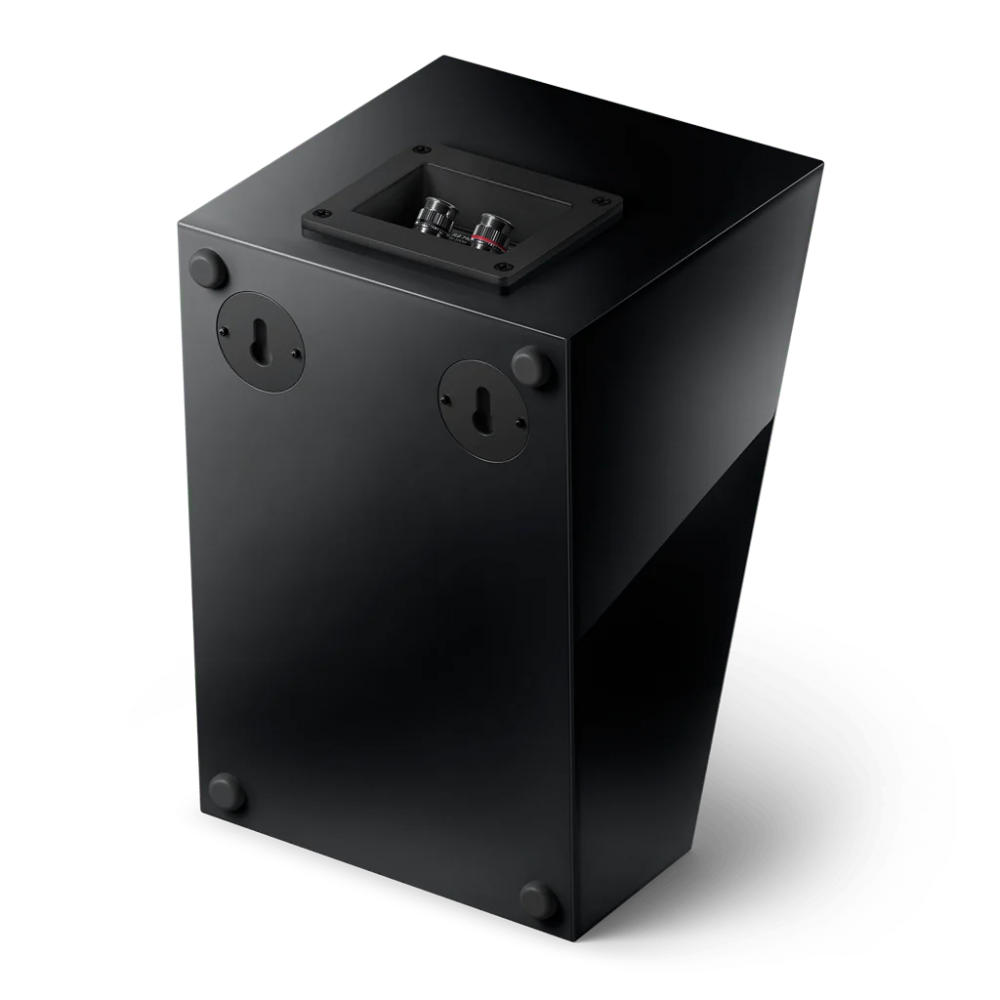

A versatile solution that can be wall-mounted as a surround or rear speaker, or placed on another speaker to bounce sound off the ceiling.

Bring Dolby Atmos home

Enjoy Dolby Atmos at home without the need for custom installation.

SPECIFICATIONS

DESIGN

Two-way closed box

DRIVE UNITS

Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome with MAT
MF/ LF: 130 mm (5.25 in.) aluminium cone

CROSSOVER FREQUENCY

2.6 kHz

FREQUENCY RANGE (-6dB)

88 Hz - 19.5 kHz

TYPICAL IN-ROOM BASS RESPONSE (-6dB)

-

FREQUENCY RESPONSE (±3dB)

97 Hz - 17.5 kHz

HARMONIC DISTORTION (90dB, 1m)

<1% 220 Hz and above
<0.5% 320 Hz - 20 kHz

MAXIMUM OUTPUT

106 dB

AMPLIFIER REQUIREMENTS

25 - 150W

NOMINAL IMPEDANCE

4 Ω (min. 3.2 Ω)

SENSITIVITY (2.83V/1m)

85 dB

WEIGHT *

4.5 kg (9.9 lbs.)

DIMENSION (H x W x D) WITH TERMINAL *

174 x 175 x 259 mm (6.9 x 6.9 x 10.2 in.)

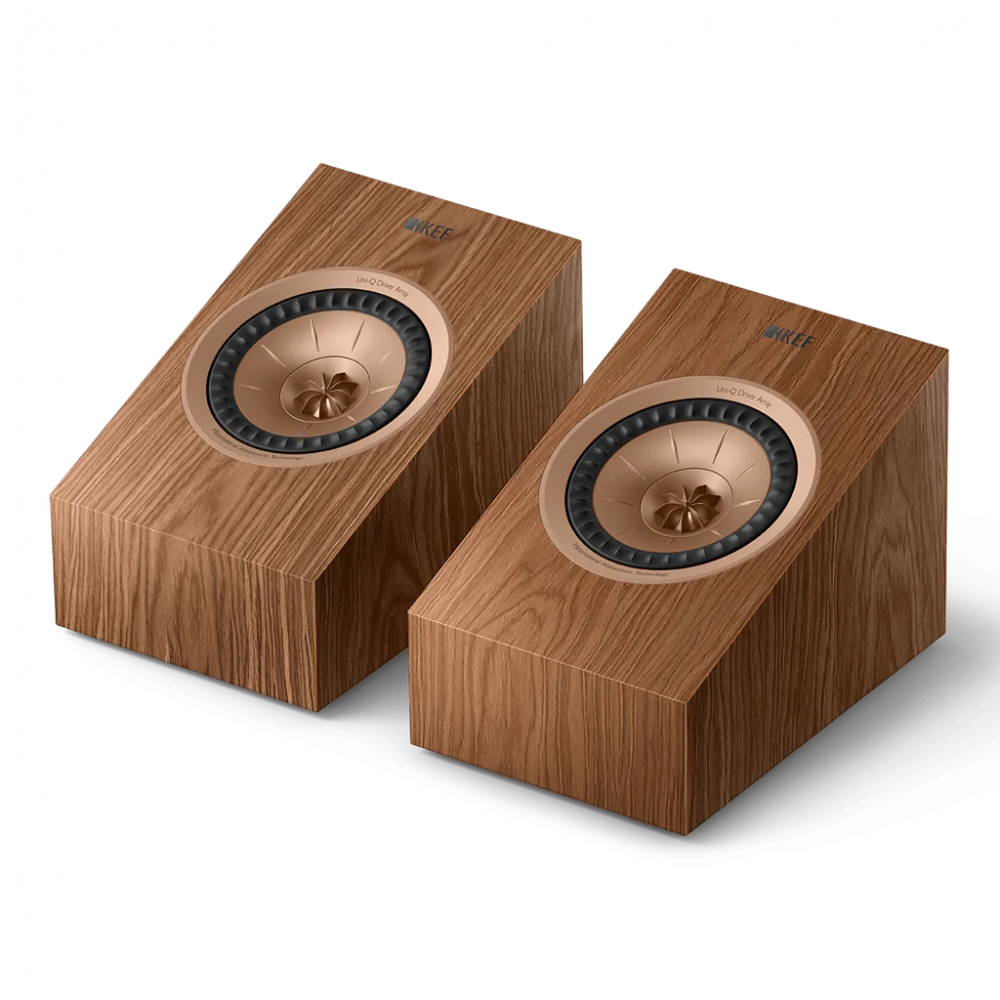

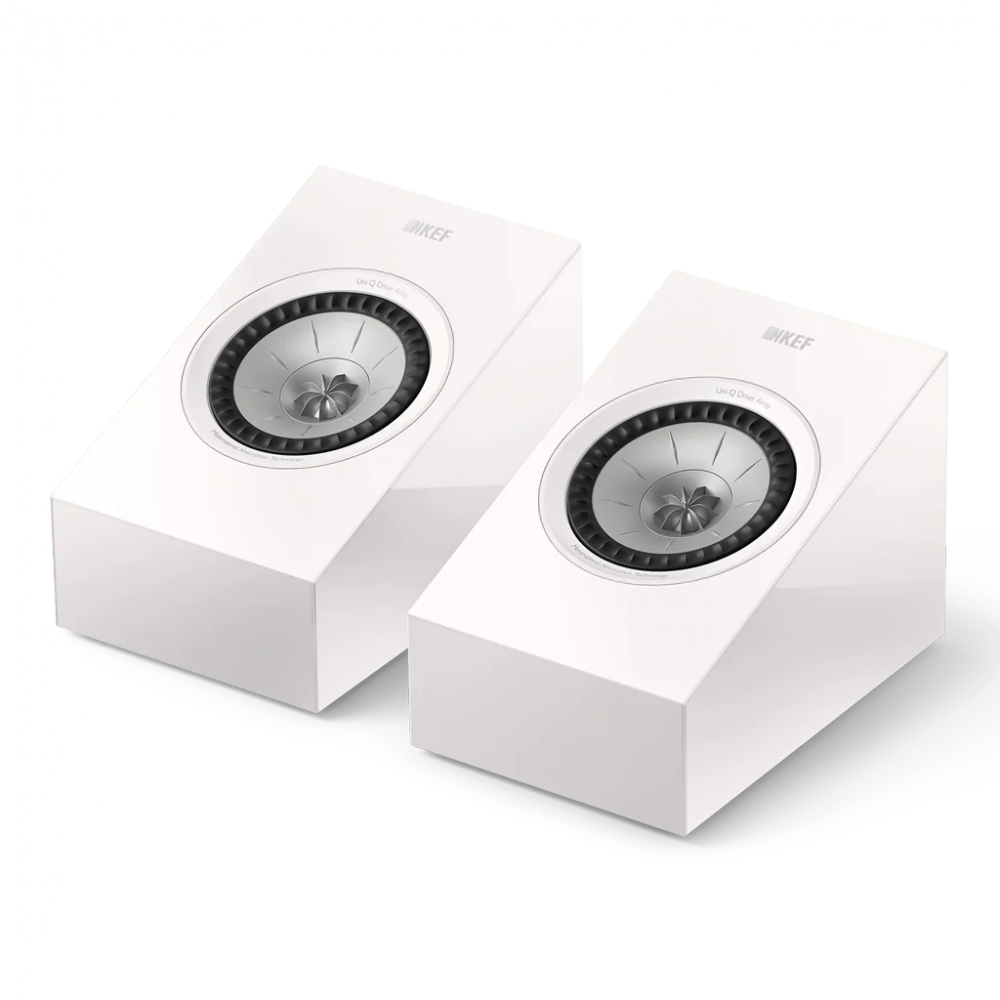

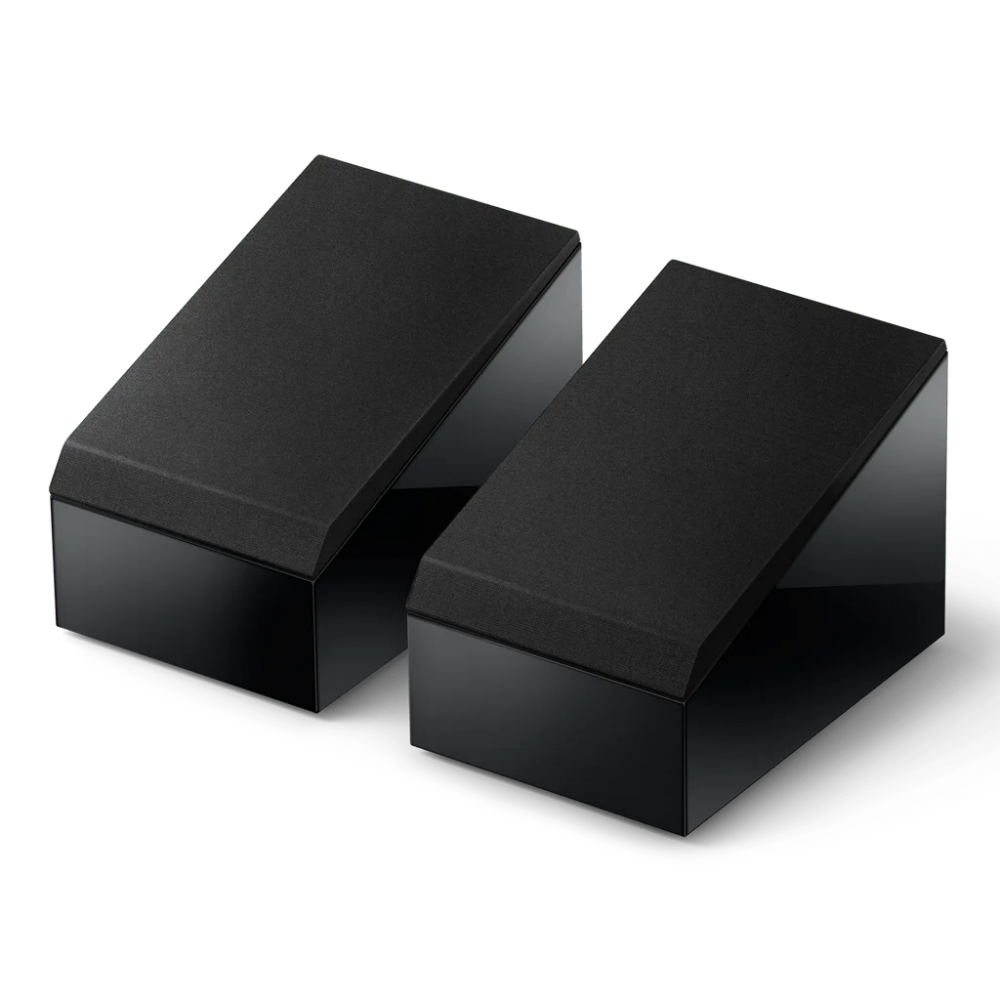

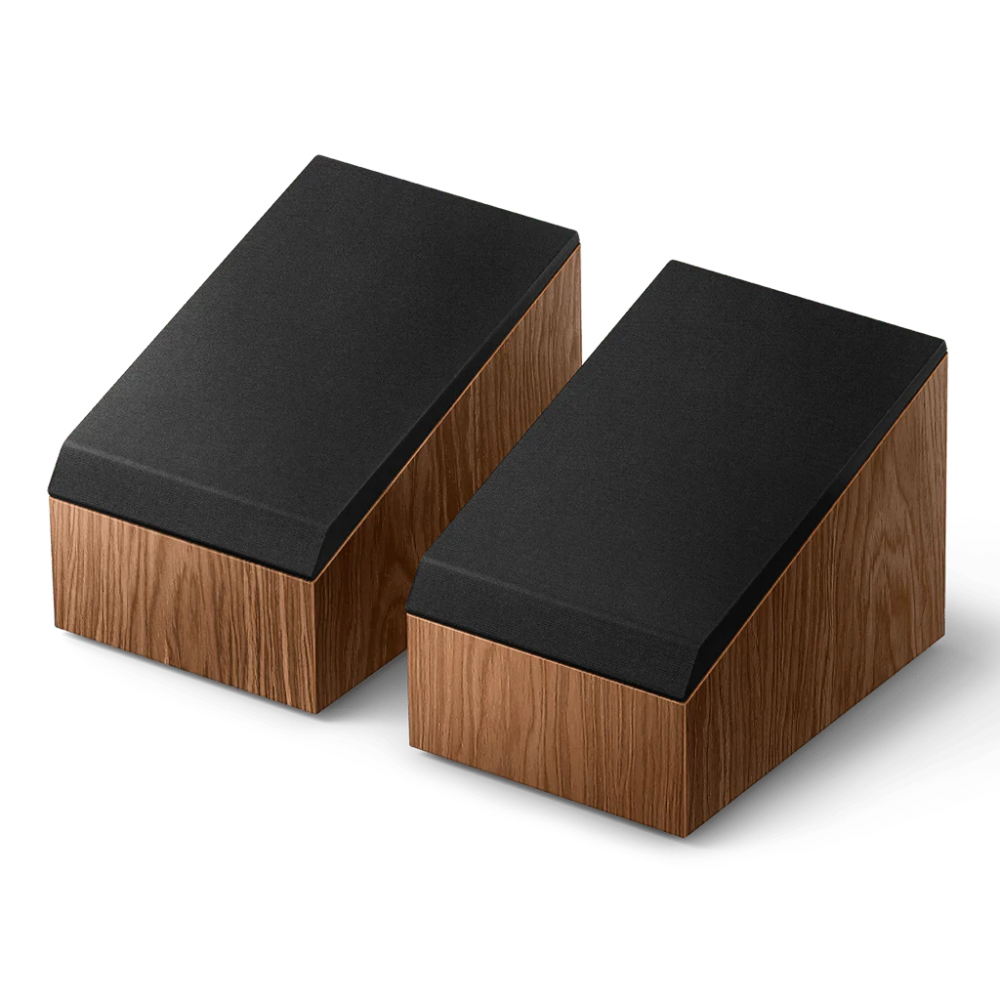

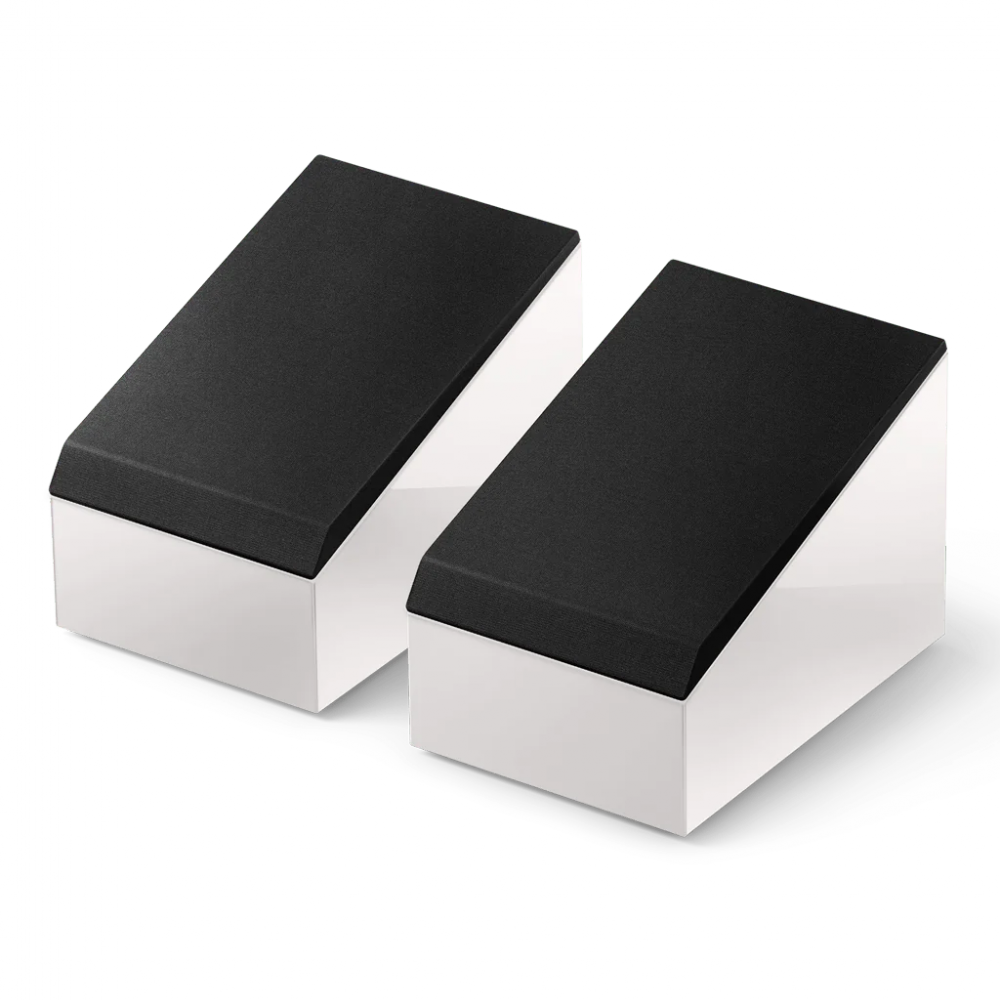

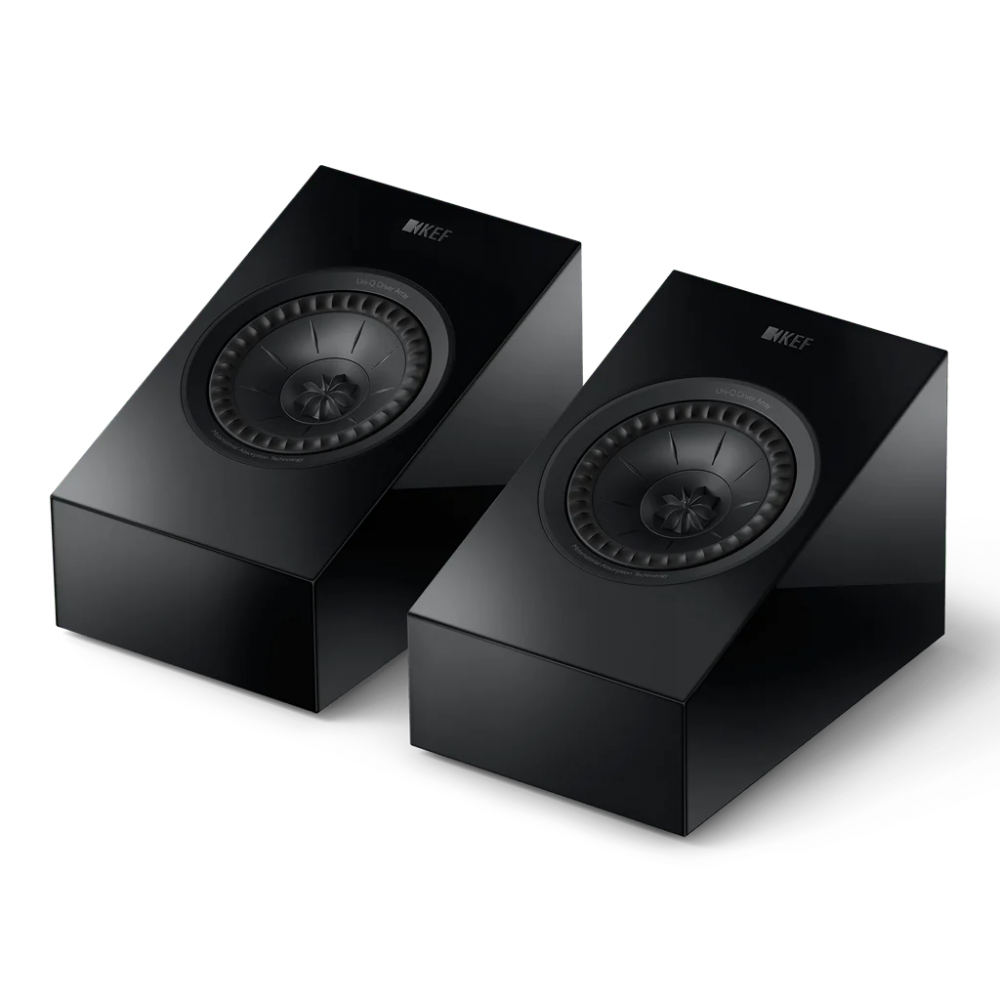

FINISHES

Black Gloss / White Gloss / Walnut
