- Dual ESS ES9028Q2M DACs - easily handles digital audio files up to 24-bit/768kHz or DSD512
- Supports MQA - be sure you're listening to artist-approved studio-quality audio

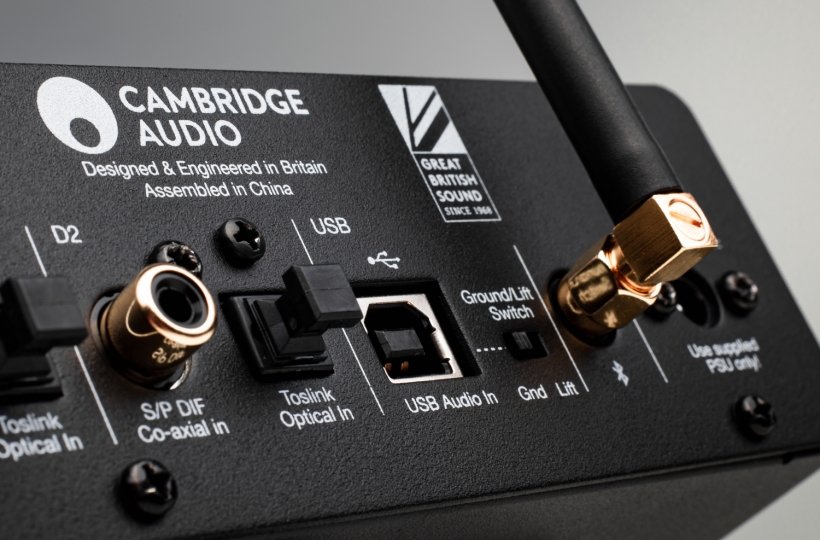

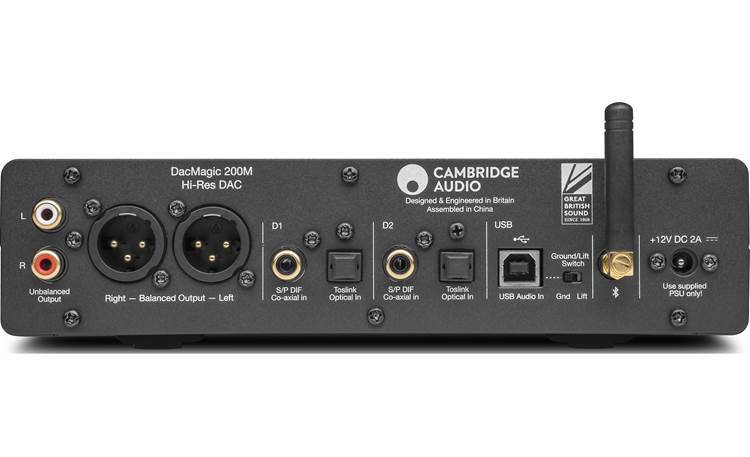

- Digital optical, digital coaxial and USB inputs - connect CD players, games consoles, laptops or other digital audio sources
- Built in Bluetooth aptX - send digital audio files from your smartphone or tablet wirelessly
- Finished in Lunar Grey
THE DETAILS
| DIGITAL TO ANALOGUE CONVERTERS | Dual ESS ES9028Q2M DACs |
| DIGITAL FILTER | Selectable, Fast – Slow – Short delay |
| FREQUENCY RESPONSE | 10Hz to 50kHz (±1dB) |
| THD+N @ 1KHZ 0DBFS | <0.0005% (A-Weighted) |
| SIGNAL TO NOISE RATIO | >115dB (A-Weighted) |
| CROSSTALK @ 10KHZ | < -110dB |
| OUTPUT IMPEDANCE | <50 Ohms (unbal), <100 Ohm (bal) |
| MAX. OUTPUT LEVEL (UNBALANCED) | 2.1V rms (fixed or variable – user selectable) |
| MAX. OUTPUT LEVEL (BALANCED) | 4.2V rms (fixed or variable – user selectable) |
| DIGITAL INPUT WORD WIDTHS SUPPORTED | 16bit (Bluetooth), 16-24bit (Optical, Coaxial), 16-24bit (USB) |
| DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED | 44.1kHz to 96kHz PCM, DoP64 (Optical), 44.1kHz to 192kHz PCM, DoP64 (Coaxial), 44.1kHz to 768kHz PCM, Native DSD 64x to 512x, DoP 64x to 256x (USB) |
| MQA COMPATIBILITY | Full decoding (Core + Renderer) |
| BLUETOOTH | v4.2, A2DP profile, SBC and AptX codecs |
| ROON TESTED | Yes |
| HEADPHONE OUTPUT THD+N | < 0.001% at 1kHz 0dBFS @ 100mW into 32ohm |
| HEADPHONE OUTPUT S/N | > 115dB (A-Weighted) |
| MAX OUTPUT POWER | >300mW @ 32ohm, >65mW @ 150ohm |
| FREQUENCY RESPONSE | 10Hz - 50kHz (±1dB) |
| RECOMMEND HEADPHONE IMPEDANCE | 10 Ohm to 600 Ohm |
| MAX POWER CONSUMPTION | 12W |
| COLOUR | Lunar Grey |
| DIMENSIONS (HXWXD) | 52 x 215 x 191mm; (2.0 x 8.6 x 7.6”) |
| WEIGHT | 1.2kg/2.6lbs |
