TRUE TO THE CORE

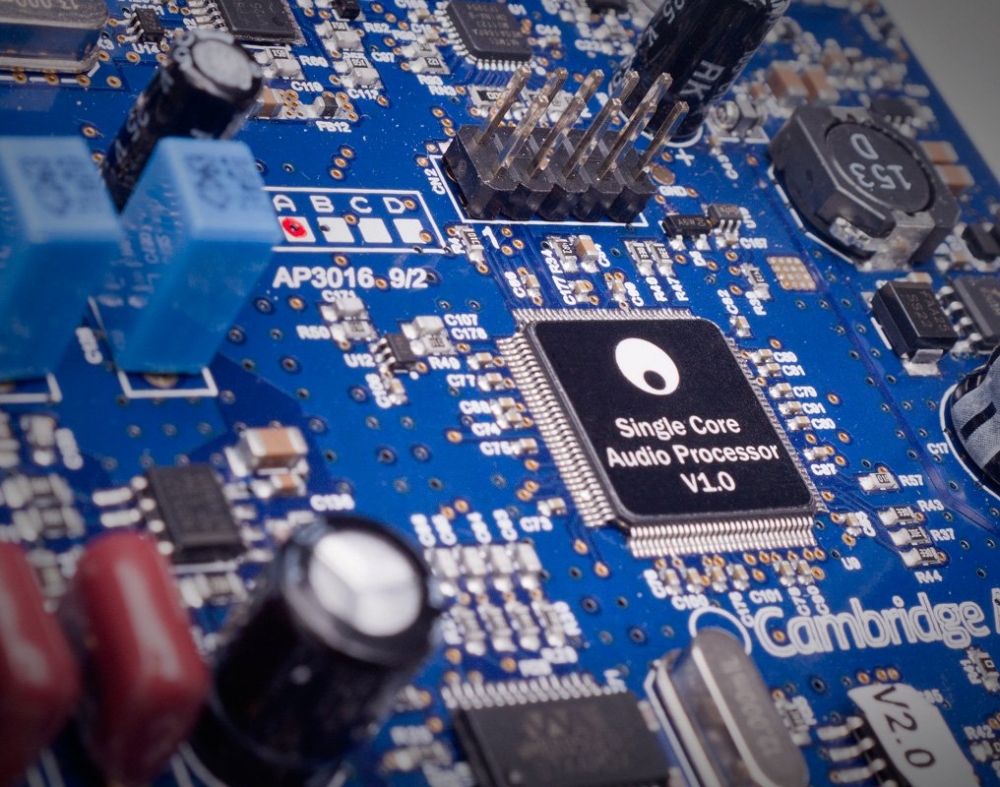

Generally the digital to analogue converter found in typical digital devices is pretty poor and won’t extract the truest quality of audio from your sources. The DacMagic 100 works by taking a direct digital audio signal from your device to bypass its soundcard or DAC. It then digitally processes the audio signal using our custom designed technology, dramatically improving sound quality and reducing distortion. This results in greater detail, sparkling clarity and a deeper scale to all of your audio.

Compatibility

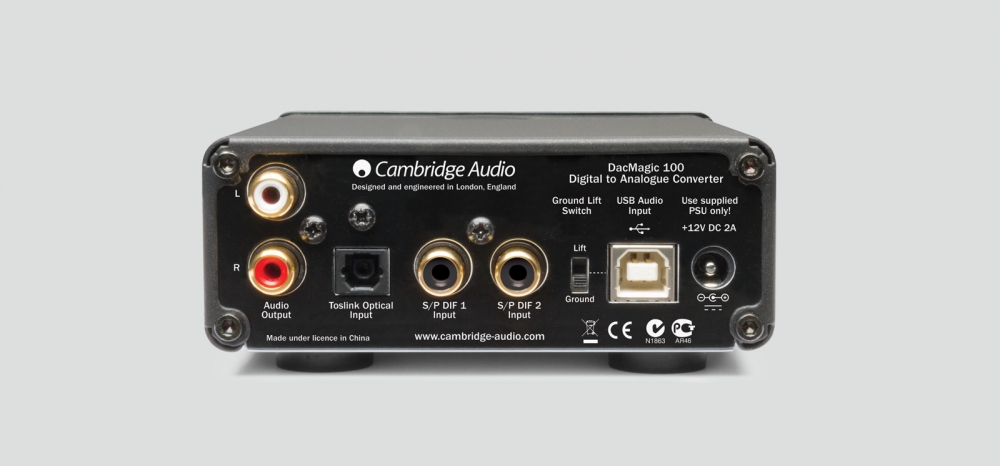

DacMagic 100 is very flexible and supports virtually all digital file formats including the very highest quality 24-bit studio master or lossless quality audio files stored on your computer. With three different digital connectivity options and the ability to connect four devices concurrently, DacMagic 100 is a true digital music enhancement hub. Set-up is totally intuitive, allowing you to begin enjoying better quality audio in minutes.

Quality of Sound

Like all our products, the DacMagic 100 was custom developed from the ground-up by our design team at our headquarters in the heart of London. Our engineering teams put an incredible amount of attention to detail on ensuring the sound quality is the focus of the product, for the DacMagic 100 this included incorporating the very latest digital to analogue converter from market-leader Wolfson.

DIGITAL TO ANALOGUE CONVERTER

Wolfson WM8742 24-bit DAC

FREQUENCY RESPONSE

20Hz to 20kHz (±0.1dB)

THD @ 1KHZ 0DBFS

<0.0025% 24-bit

THD @ 1KHZ -10DBFS

<0.0025% 24-bit

THD @ 20KHZ 0DBFS

<0.0025%

SIGNAL TO NOISE RATIO

-113dBr

TOTAL CORRELATED JITTER

<130pS

CROSSTALK @ 1KHZ

< -130dB

CROSSTALK @ 20KHZ

< -112dB

OUTPUT IMPEDANCE

<50ohms

MAX. OUTPUT LEVEL (UNBALANCED)

2.3V rms

DIGITAL INPUT WORD WIDTHS SUPPORTED

16-24bit

DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED

32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz

MAX. POWER CONSUMPTION

5W

COLOUR

Black or silver

DIMENSIONS (WXHXD)

106 x 46 x 130mm (4.1 x 1.8 x 5.1")

WEIGHT

0.5Kg (1.1 lbs)
