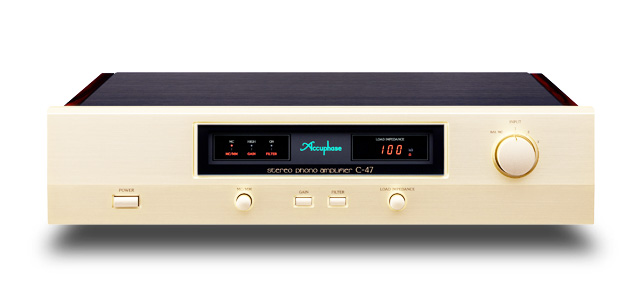

The C-47 is the first phono amplifier of this series which realizes a fully balanced configuration from input to output. The resulting product not only is highly impervious to external noise, it also features a dedicated head amplifier optimized for the characteristics of MC and MM phono cartridges, and a high-accuracy equalizer amplifier, thereby ensuring precise equalization with a minimum of noise. A set of newly added dedicated balanced MC phono inputs enables balanced connection to the analog record player. By bringing out the full performance potential of each phono cartridge, the C-47 delivers a rich and deeply satisfying musical experience.

  • Low-noise fully balanced configuration

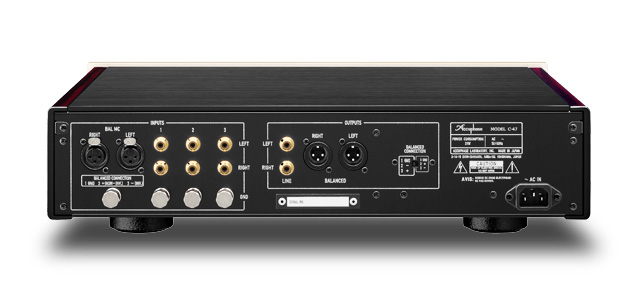

  • One dedicated balanced MC phono input and three sets of regular phono inputs
  • Separate settings memory for each input position
  • Balanced and line level output connectors
  • Balanced output polarity selector
  • Full mono construction
  • Separate toroidal power transformers for left and right channel
  • Low-noise regulated power supply circuitry unaffected by load fluctuations
  • High-accuracy phono equalizer with RIAA deviation of only ±0.3 dB
  • Load impedance settings for six MC and three MM phono cartridge types
  • 7-segment LED indicator shows load impedance
  • Gain selector for low-output phono cartridges
  • Built-in subsonic filter
  • Disc equalizer assembly using glass cloth fluorocarbon resin PCBs with low dielectric constant and low losses
  • Gold-plated printed circuit boards
  • Aluminum top plate with hairline finish
  • Elegant side panels with natural wood grain finish


  • RIAA Deviation, MC 10-20,000 Hz +/- 0.3 db,  MM 10-20,000 Hz +/- 0.3 db
  • Total Harmonic Distortion 0.005%
  • Gain select from High or Normal MM 34 or 40 db, MC 64 or 70 db
  • Input Sensitivity (at rated output 1 kHz, 2 V)  MC 64 dB 1.26 mV, 70 dB 0.63 mV. MM 34 dB 40 mV 40 dB 20 mV.
  • Input Impendance  MC settings 10 ohms, 30 ohms, 100 ohms, 200 ohms, 300 ohms and 1 Kilohm.  MM settings 1 Kilohms 47 kilohms and 100 kilohms
  • Rated output 2 Volts for each 50 ohms for both balanced and standard line output
  • S/N Ratio, Input-converted Noise MC with 64 dB gain : 97 dB, 70 dB gain 91 dB, MM with 34 dB gain 108 dB, 40 dB gain 102 dB
  • Power consumption 21 watts
  • Dimensions Width 465 mm, Height 114 mm, Depth 407 mm
  • Weight 14.8 kgs net. 21 kgs shipping
