BLAST FROM THE PAST

Sonus faber is not new to the arena of subwoofer design and engineering. The first subwoofer project, the Gravis FB100, was launched back in 1986, ten years later was born Sonus faber Cremona M. Today, with the new Gravis Collection, Sonus faber returns to its roots, merging a ever increasing cutting-edge technology while maintaining its identity of natural sound and quality Italian hand-craftsmanship.

REFINEMENT AND ELEGANCE

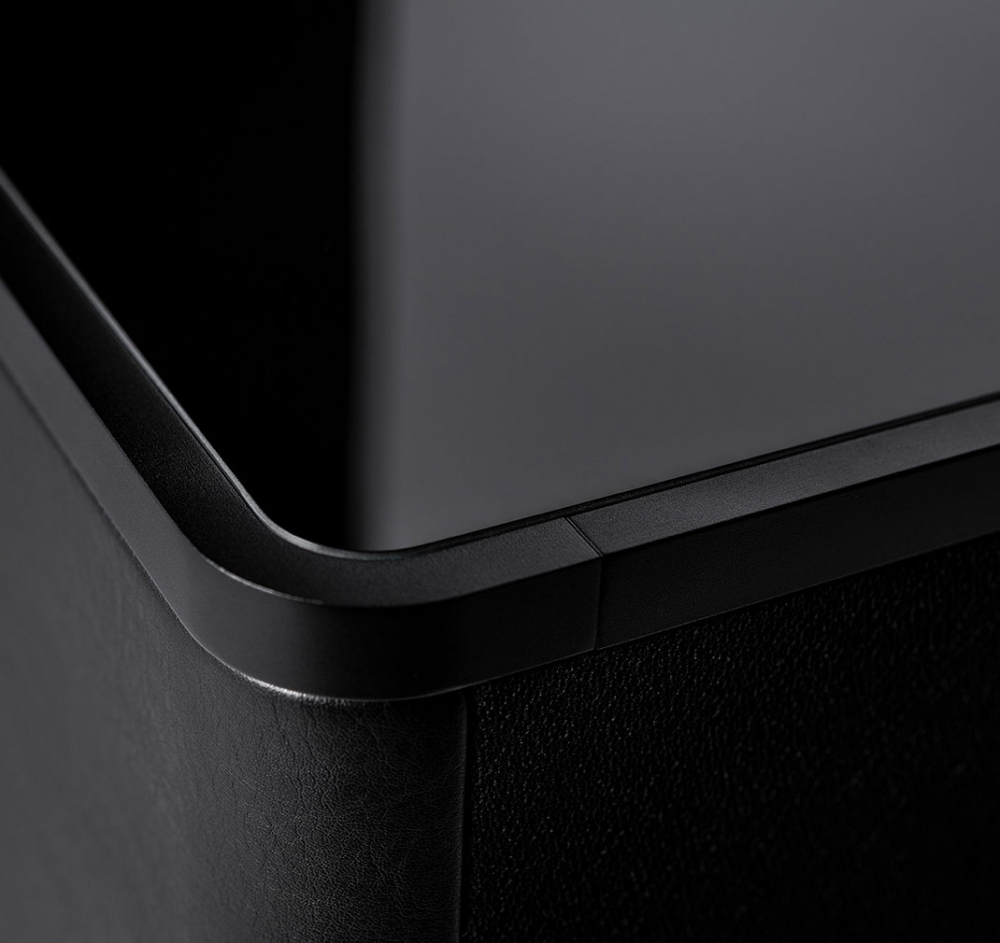

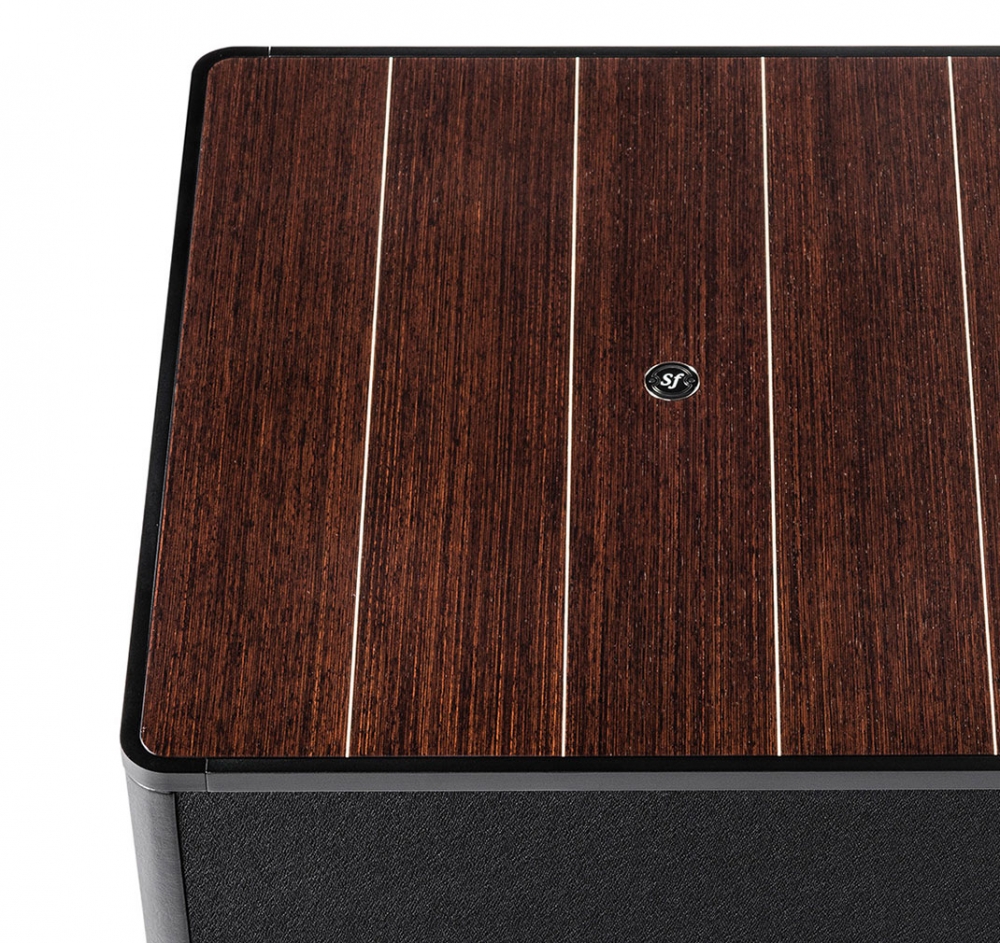

The Gravis III, V and VI subwoofers, the most powerful and high-end models of the active systems line, have been designed to be the perfect complement to all the loudspeakers collections that marked the history of Sonus faber. Aesthetically connected by the body enriched by a black leather covering, they differ from each other by the finishes of the hand-finished wooden top.

ALL-ROUND COLLECTION

Gravis collection, the active subwoofers line dedicated to the reproduction of low frequency, is able to match all Sonus faber full-range loudspeakers collections. Gravis III naturally fits in with Olympica Nova collection, while Gravis V and VI represent the perfect choice to those who want to complete Homage Tradition and Reference collections.

TECHNICAL SPECIFICATIONS

SYSTEM

Sealed box loading, single driver, active subwoofer

SPEAKERS

1 x 250 mm (10”) long throw, sandwich honeycomb cone, wide rubber surround LF unit

AMPLIFICATION

High performance, Class AB. 600 W (nominal), 900 W (peak)

FREQUENCY RESPONSE

25 Hz (@- 6dB, acoustic Linkwitz 4th order roll-on, default setting) to Fc (user continuously adjustable)

MAINS INPUT VOLTAGE

100-120Vac – 50/60Hz or 220-240 Vac – 50/60 Hz. Factory selected

FUSE

T6.3A L250V
(100-120 Vac – 50/60 Hz)
T3.15A L250V
(220-240 Vac – 50/60 Hz)

CONTROLS

Direct access Master volume;
APP control featuring: 4 selectable presets, volume, continuously adjustable crossover frequency (40 to 150 Hz , filtering slope 24 dB/oct); continuously adjustable signal phase (0° to 360°); up to 8 parametric EQ filters, delay (1 to 20 ms); automatic room calibration; selectable threshold auto power on/off

AUDIO SIGNAL INPUTS

2 x LINE (unbalanced), Left and Right/LFE - RCA plugs
1 x LINE (balanced) - XLR plug
HIGH LEVEL - Neutrik 4-pole Speakon© plug

POWER CONSUMPTION

< 2 W (Stand-by)
700 W (rated power)

DIMENSIONS (HXWXD)

415 x 400 x 495 mm
16.3 x 15.7 x 19.5 in

WEIGHT

26.7 Kg
58.8 lb
