Where Acoustic Precision Meets Artistic Design

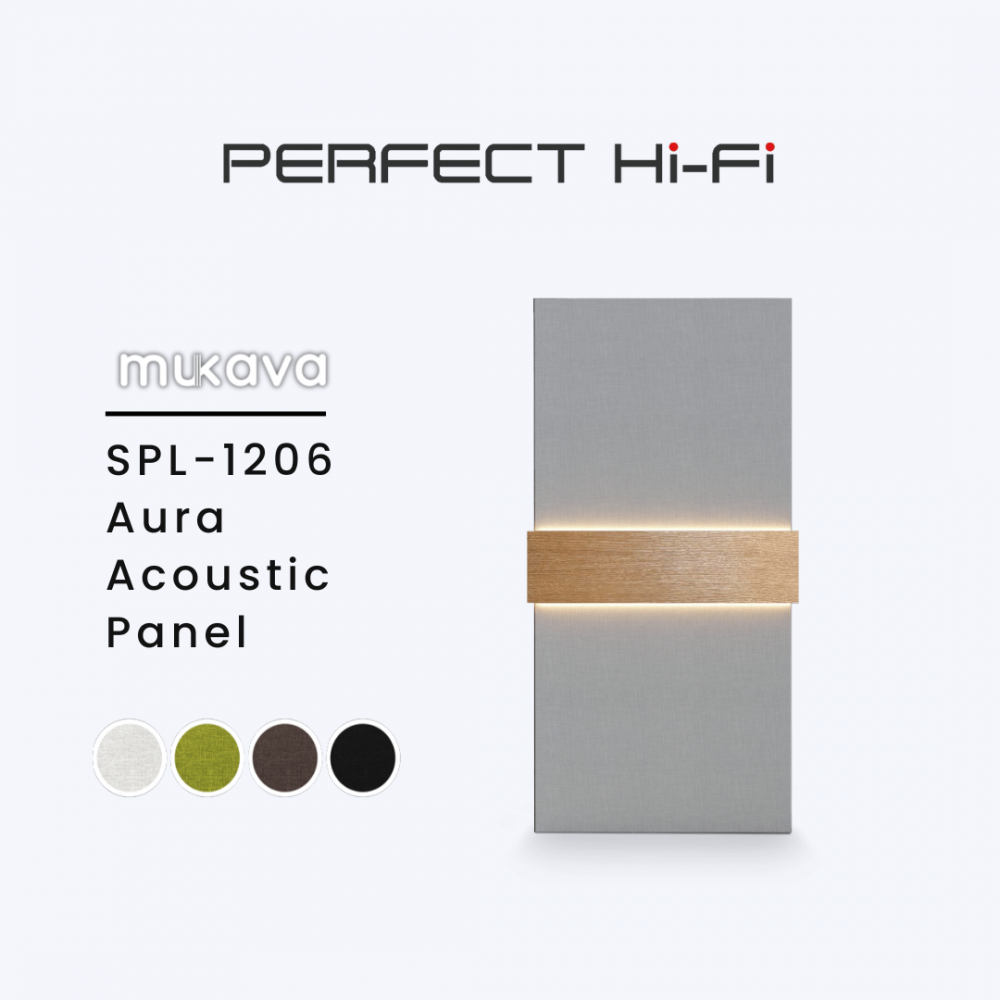

The Mukava Aura Acoustic Panel SPL-1206L redefines space acoustics with its scientifically engineered sound control and breathtaking visual appeal. These large-format panels combine ultra-high NRC performance with customizable art finishes, making them perfect for luxury hotels, corporate lobbies, high-end residences, and performance venues.

Featuring precision-laser-cut patterns on aircraft-grade aluminum substrates, each panel delivers exceptional broadband absorption while serving as architectural focal points. The modular mounting system allows for creative configurations - from dramatic feature walls to entire acoustic ceilings.

声学工程与空间美学的巅峰之作
Mukava Aura SPL-1206L声学装饰板 通过精密声学结构与可定制艺术图案，为高端商业空间、星级酒店、私人住宅及文化场馆提供革命性的声装解决方案。

采用航空级铝基板与激光精密切孔工艺，每块面板既是卓越的宽频吸声体，又是震撼的视觉艺术品。独特的模块化安装系统可打造整面声学墙、艺术吊顶等创新应用。

Technical Specifications:

✔ Core Technology:

• Perforated Aluminum Face: 1.2mm thickness with 23% open area

• Acoustic Backing: 50mm thick Class A fire-rated fiberglass

• NRC Rating: 0.92 (250Hz-4000Hz)

✔ Dimensions:

• Standard: 1200mm × 600mm × 60mm

• Custom sizes up to 2400mm × 1200mm available

✔ Material Excellence:

• Aircraft-grade aluminum (6063-T5)

• Powder-coated finish (200+ RAL colors)

• Recyclable construction

✔ Performance Features:

• Broadband frequency absorption

• 100% non-fiber shedding

• UV-resistant finishes

✔ Installation System:

• Hidden Z-clip mounting

• 15mm air gap recommended

• Seamless butt-joint capability

✔ Certifications:

• ASTM E84 Class A fire rating

• LEED v4 compliant

• ISO 14001 environmental management

技术参数:

✔ 核心科技:

• 穿孔铝板面层: 1.2mm厚度，23%开孔率

• 声学基材: 50mm厚A级防火玻璃棉

• 降噪系数: 0.92(250Hz-4000Hz)

✔ 规格选项:

• 标准尺寸: 1200毫米×600毫米×60毫米

• 支持定制(最大2400毫米×1200毫米)

✔ 材质优势:

• 航空级铝合金(6063-T5)

• 粉末喷涂(200+RAL色系可选)

• 100%可回收环保结构

✔ 性能特点:

• 全频段声能吸收

• 零纤维脱落

• 抗紫外线表面处理

✔ 安装系统:

• 隐藏式Z型挂件

• 建议保留15mm空腔

• 可实现无缝拼接

✔ 认证标准:

• ASTM E84 A级防火

• LEED v4认证

• ISO 14001环境管理体系

Design Options:

Standard Patterns:

• Aura Wave™ (patented soundwave texture)
• Geometric Fractal™ Series
• Acoustic Cloud™ organic formations

Custom Solutions:

• Corporate logo laser-cutting
• Architect-specifc designs
• Cultural theme artwork
• Digital print integration

设计选项:

标准图案系列:

• Aura Wave™ (专利声波纹理)
• Geometric Fractal™ 几何分形
• Acoustic Cloud™ 流云形态

定制服务:

• 企业标识激光切割
• 建筑设计师专属图案
• 文化主题艺术创作
• 数码喷绘集成
