In an era of flashy specs and lifestyle branding, the MC830 stands out because it delivers on fundamentals: power, fidelity, build quality and longevity. For those who seek immersive, high-resolution music playback or commanding home theatre performance — this isn’t just another amplifier; it’s a statement piece. By matching it with a high-quality preamp, source components, and well-matched loudspeakers, you’re investing in an experience, not just hardware.

Whether you’re powering a high-end two-channel system or building a premium home theatre setup, the MC830 delivers exceptional control, transparency and raw power — just the way McIntosh has done for decades.

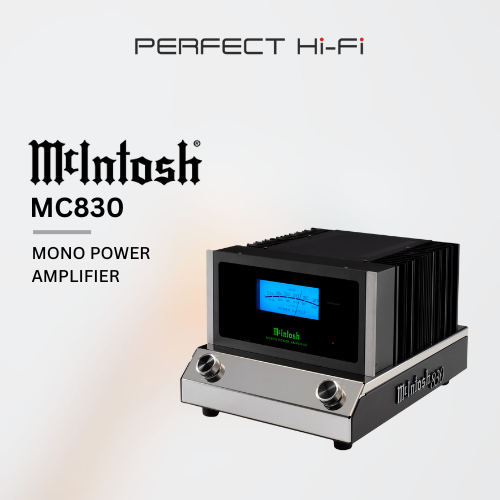

The McIntosh MC830 is a 1-channel solid-state amplifier designed to bring maximum performance to serious audio systems. Key features include:

• Power output: 300 watts into 8 ohms, and 480 watts into 4 ohms — enough muscle to drive demanding loudspeakers with ease.

• Precision and clarity: Total harmonic distortion as low as 0.005 %. Signal-to-noise ratio: balanced 120 dB, unbalanced 118 dB.

• Robust build & refined design: A polished stainless-steel open-chassis design with McIntosh’s signature Monogrammed Heatsinks™, black-glass front panel, illuminated logo and analog dual-scale watt meter.

• High-end connectivity & protection:

  • Balanced (XLR) and unbalanced (RCA) inputs for flexible system integration.

  • Patented Power Guard® technology which monitors output signal and makes real-time adjustments to prevent clipping and protect speakers.

  • Sentry Monitor™ fuse-less protection circuit automatically disengages the output stage if current exceeds safe levels.

  • Gold-plated Solid Cinch™ speaker binding posts to secure connections and reduce corrosion over time.

  • Power Control ports and selectable Auto-Off feature (automatically powers down after approx. 30 minutes of no input).

• Performance specs:

  • Frequency response: +0, –0.25 dB from 20 Hz to 20 kHz, –3 dB down to 100 kHz.

  • Damping factor >100 wideband.

  • Dimensions: ~31.2 cm (W) × 24.1 cm (H) × 40.6 cm (D) and weight ~21.8 kg (48 lbs).

Technical Specifications

• Power Output: 300 W into 8 Ω; 480 W into 4 Ω.

• Number of Channels: 1 (mono)

• Total Harmonic Distortion (THD): 0.005% maximum (20 Hz-20 kHz)

• Signal-to-Noise Ratio (S/N): 120 dB (balanced); 118 dB (unbalanced)

• Dynamic Headroom: ~2 dB

• Damping Factor: >100 (wideband)

• Frequency Response: +0/-0.25 dB from 20 Hz to 20 kHz; +0/-3.0 dB from 10 Hz to 100 kHz

• Inputs: 1 balanced (XLR) and 1 unbalanced (RCA)

• Speaker binding posts: Patented “Solid Cinch™” gold-plated

• Circuit Design: Solid state, direct-coupled output stage, push-pull complementary.

• Unit Dimensions (W × H × D): 12-9/32″ (31.2 cm) × 9-1/2″ (24.1 cm) × 16″ (40.6 cm)

• Weight: 48 lbs (≈21.8 kg)
