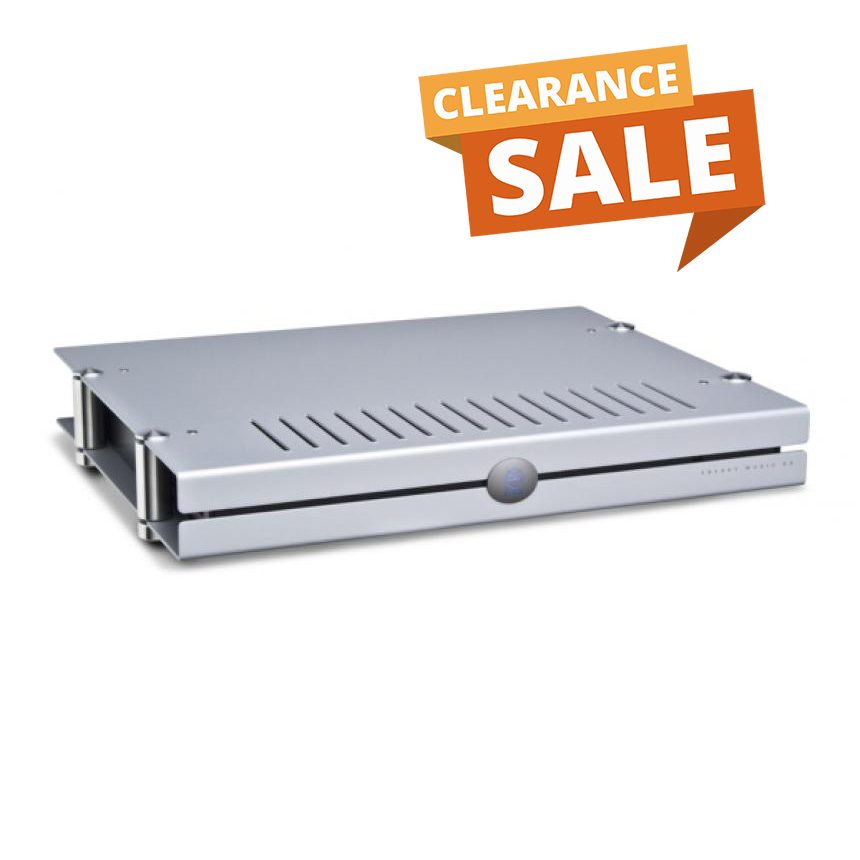

Sneaky Music DS combines the convenience of a network music player with Linn's experience, expertise and commitment to high quality music reproduction. With on-board volume control and a built-in power amplifier, add Sneaky DS to your home network and connect your loudspeakers to enjoy the best quality reproduction of your music available from a network music player. Sneaky Music DS supports all popular digital music formats and plays all high quality audio sample rates and bit depths natively. Sneaky DS has a customdesigned up-sampling engine which reduces noise and signal distortion, ensuring you get the best possible reproduction of your music files. Enjoy high quality internet radio streams and podcasts, as well as the latest online and on-demand music services, with a level of sound reproduction which far exceeds a home computer. Select your favourite interface for your computer, tablet or smartphone and enjoy album art and playlist control of your entire music collection from anywhere in your home. Sneaky Music DS shares the same technology platform as all Linn DS players, with regular software updates from Linn adding features and improving sound quality. Available in silver or black, Sneaky Music DS is compact and flexible enough to bring high quality music reproduction to any room in your home.

• Date of introduction March 2008 • Type Network music player • Dimensions (H) 44.5 mm x (W) 345 mm x (D) 274 mm (H) 1.8 inches x (W) 13.6 inches x (D) 10.8 inches (can be positioned horizontally or vertically) • Weight 2.7 kg / 6 lb • Mains supply voltage 100 – 120 V ac (±10%) 50 – 60 Hz (auto ranging) 200 – 240 V ac (±10%) 50 – 60 Hz • Fuse 250 V, T1.6 A (not user replaceable) • Power consumption standby 10 W operational 14 W maximum continuous 120 W • Supported file types FLAC, ALAC, WAV, MP3, WMA (except lossless), AIFF, AAC, OGG • Audio sample rates 7.35 k, 8 k, 11.025 k, 12 k, 14.7 k, 16 k, 22.05 k, 24 k, 29.4 k, 32 k, 44.1 k, 48 k, 88.2 k, 96 k, 176.4 k, 192 k • Word depths 16 – 24 bits • Ethernet interface 100Base-T RJ45 • Control protocol Compatible with UPnP™ media servers, UPnP™ AV 1.0 control points • Local control RS232 x 2 RJ11 Remote controllable (handset not supplied) • Connector types optical digital output TOSLINK coaxial digital output RCA phono line outputs RCA phono speaker outputs Inverted safety 4 mm BFA sockets • Output impedance line outputs 300 Ω speaker outputs 0.06 Ω • Output voltage line outputs 2.8 V peak, 2 V rms (0 dBFS) speaker outputs 15 V peak, 10 V rms (0 dBFS, 16.6 dB gain, vol. 79) • Output offset line outputs < 2 mV speaker outputs < 3 mV Please note that some functionality may require the latest software from Linn Products, which is available from www.linn.co.uk/ds_software. Linn Products Limited Glasgow Road, Waterfoot, Eaglesham, Glasgow G76 0EQ, Scotland, UK. Telephone: +44 (0) 141 307 7777, Facsimile: +44 (0) 141 644 4262, Helpline: 0500 888909, E-mail: helpline@linn.co.uk, Website: www.linn.co.uk Linn Records Limited Glasgow Road, Waterfoot, Eaglesham, Glasgow G76 0EQ, Scotland, UK. Telephone: +44 (0) 141 303 5027, Facsimile: +44 (0) 141 303 5007, Helpline/Mail order: +44 (0) 141 303 5029, E-mail: records@linn.co.uk, Website: www.linnrecords.com Copyright © 2011, Linn Products Limited. All rights reserved. Linn, the Linn logo and all other Linn product names and slogans are trade marks or registered trade marks of Linn Products Limited, registered in at least the UK and/or the EU. Linn Products Limited disclaims any proprietary interest in trade marks and trade names other than its own. (04/11) • Signal to noise ratio line outputs Better than -120 dB • Channel balance Better than +/- 0.2 dB • Channel separation line outputs Better than -120 dB speaker outputs Better than -100 dB • Gain range -80 dB to +20 dB • Gain resolution 1 dB • Unity gain volume 0 dB = volume 80 • Dynamic range 120 dB • Damping factor 67 • Signal level for clipping 415 mV rms (0 dBFS, +16.6 dB gain, vol. 79) • Harmonic distortion < 0.03% at 1 kHz at 10 W • Load tolerance Unconditionally stable into all loudspeaker loads • Frequency response pre-amp 2.5 Hz – 170 kHz (-3 dB) power amp 2.5 Hz – 48 kHz (-3 dB) • Speaker output voltage 15 V peak • Speaker output power 20 W into 4 W
