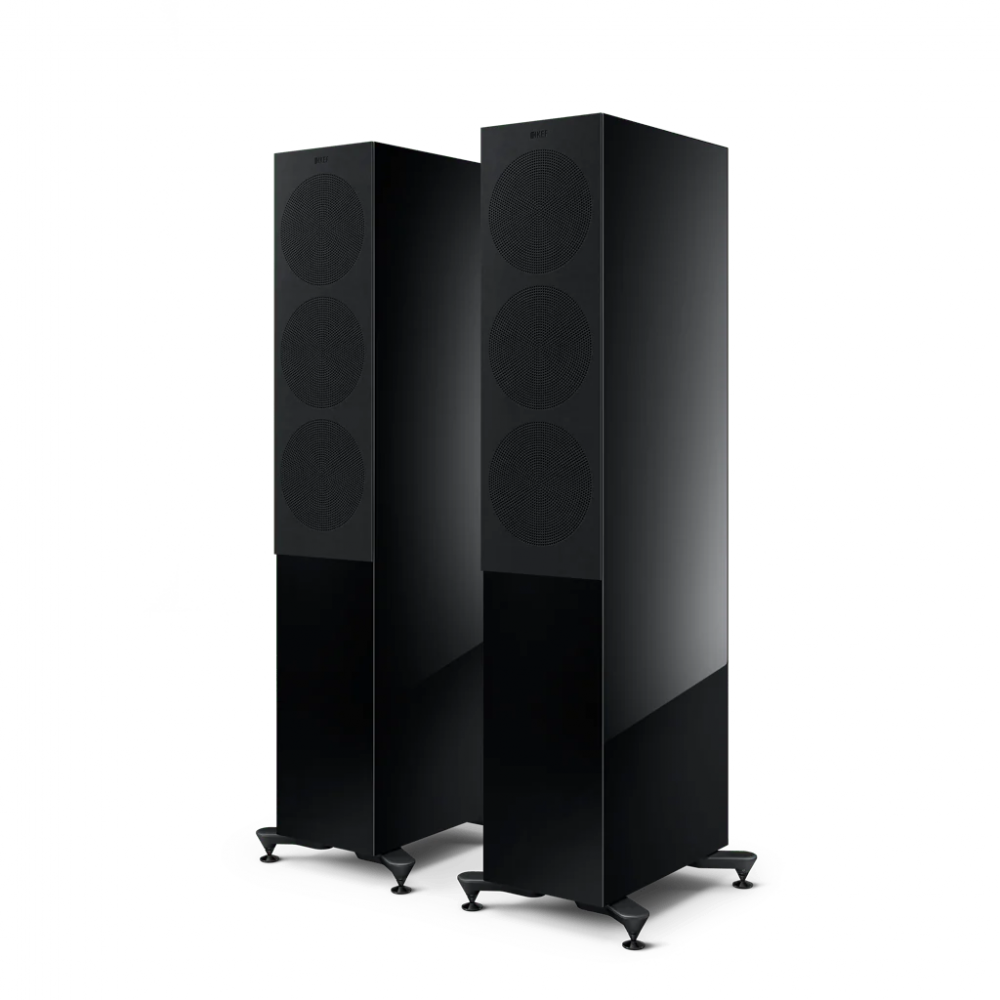

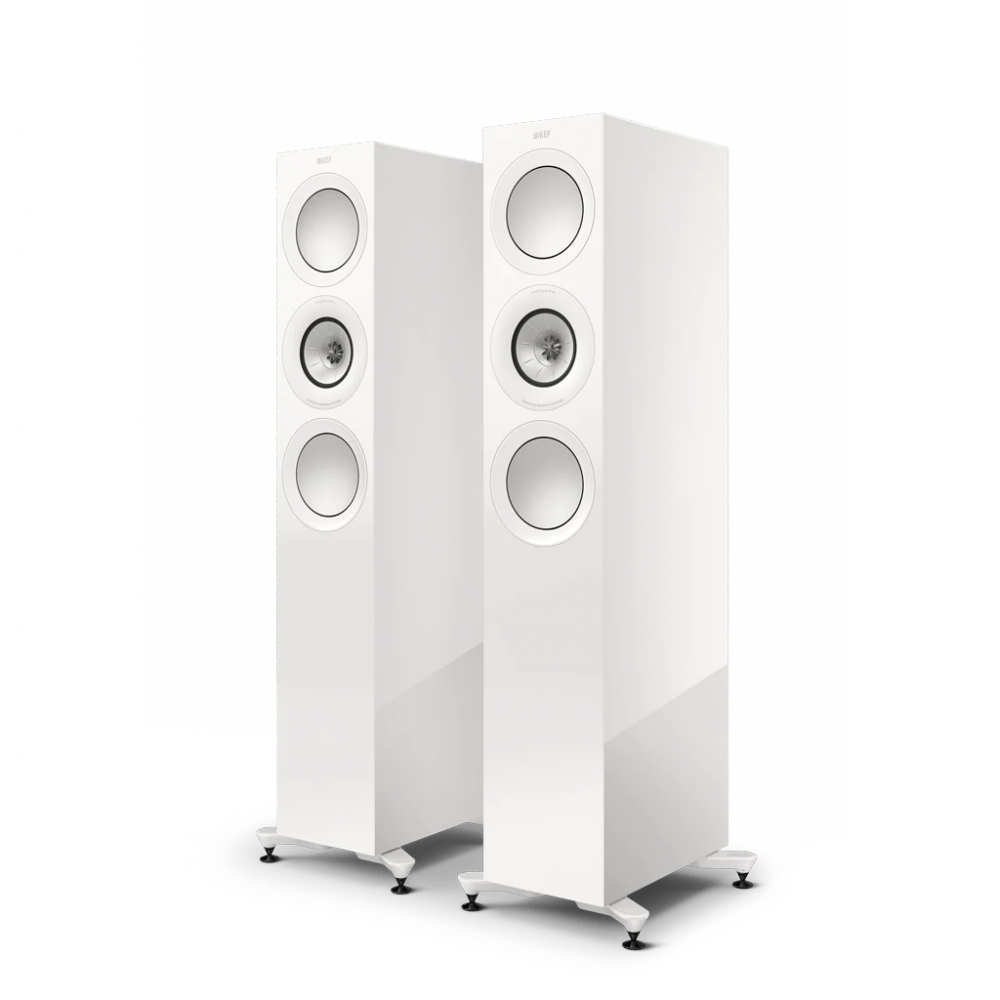

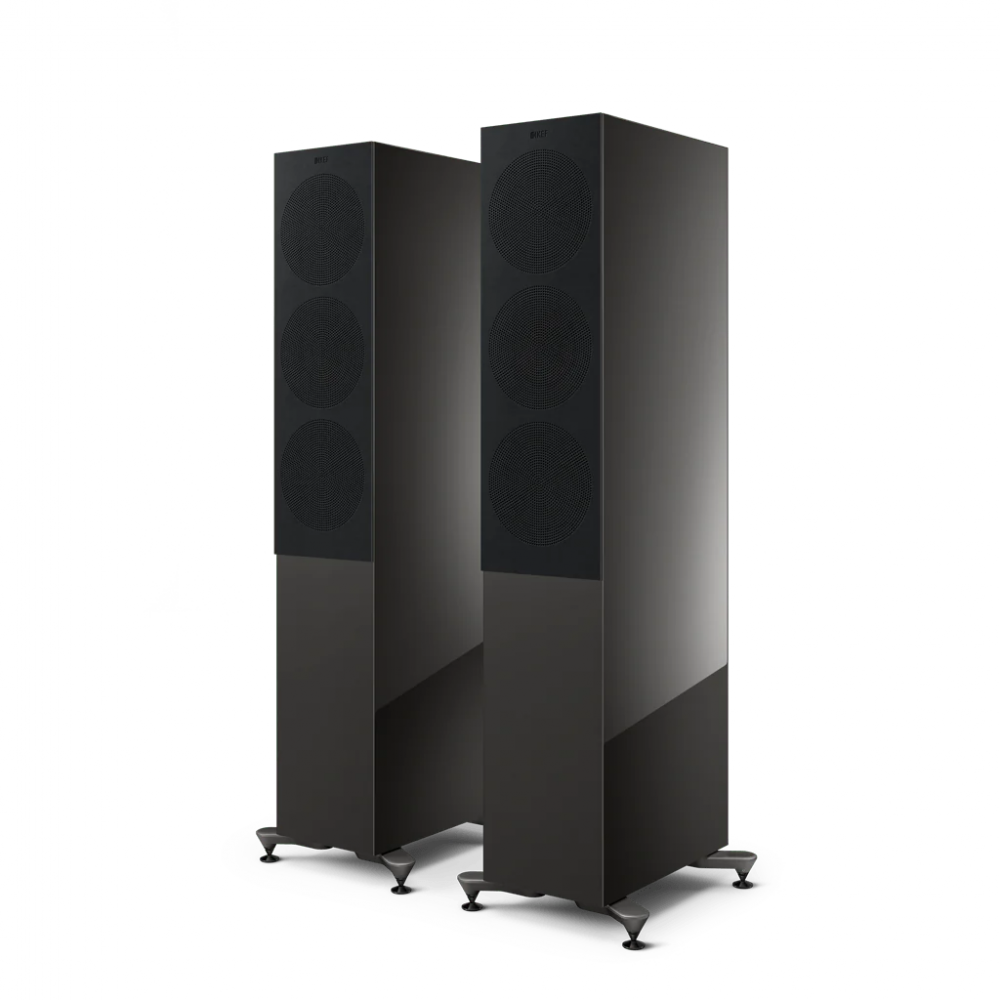

Mid-sized three-way floorstanding speakers
The mid-sized floorstanding member of the R Series is as powerful as it is flexible. Its 12th generation Uni-Q® driver array with MAT™ ensures a crystal-clear performance with music and movies alike, while its two 6.5” hybrid aluminium bass drivers deliver accurate, dynamic bass.
What is in the box

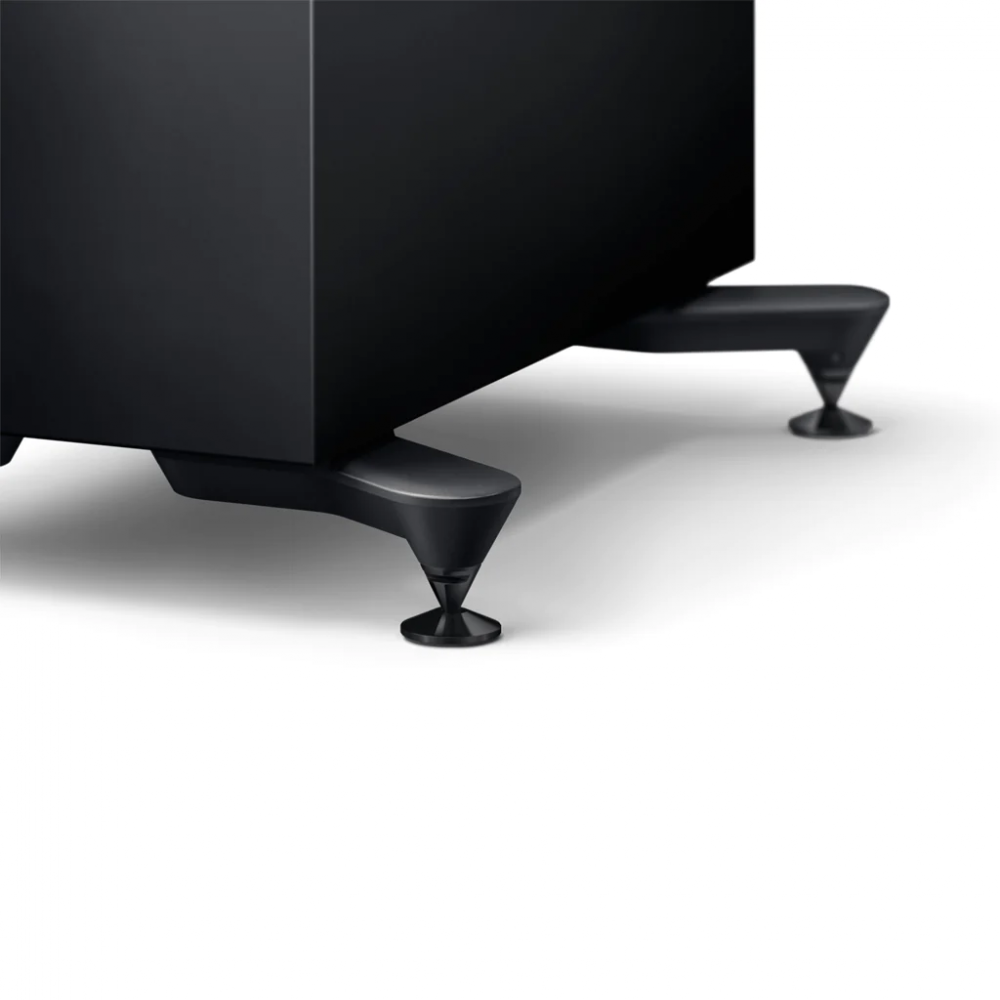

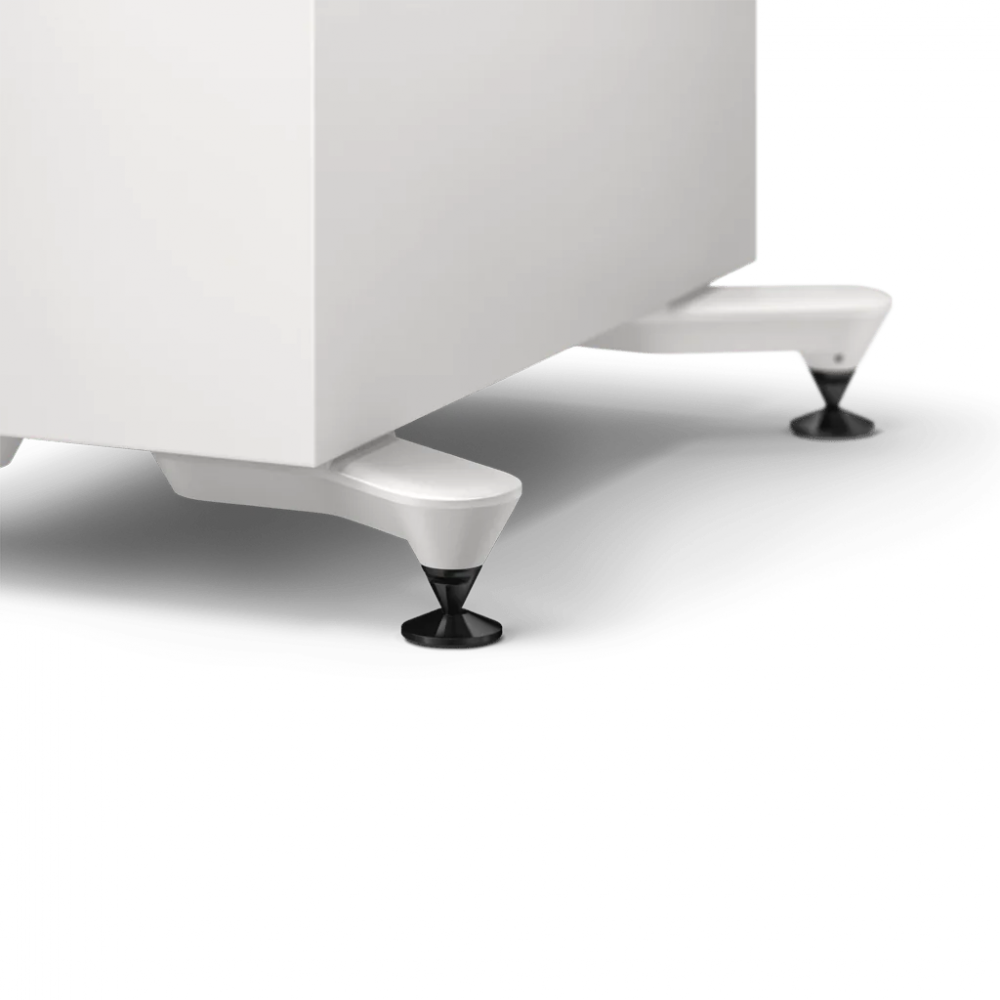

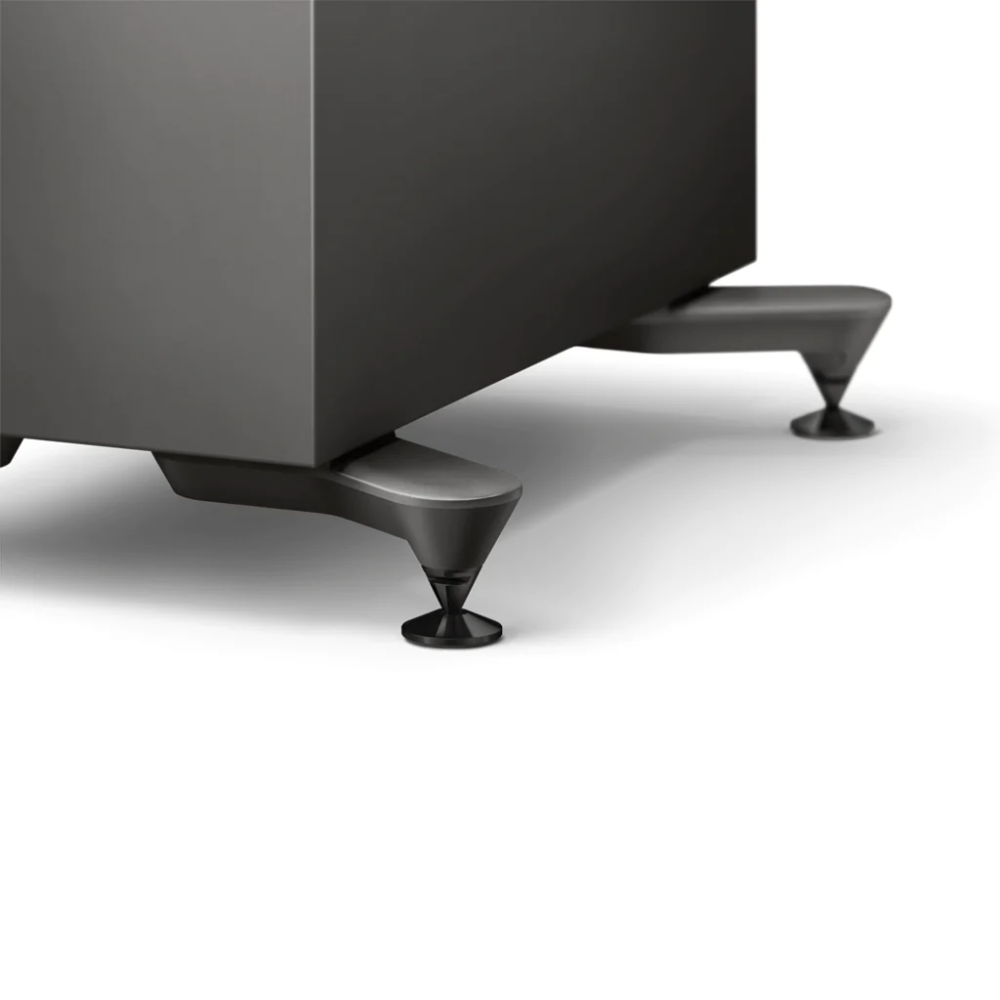

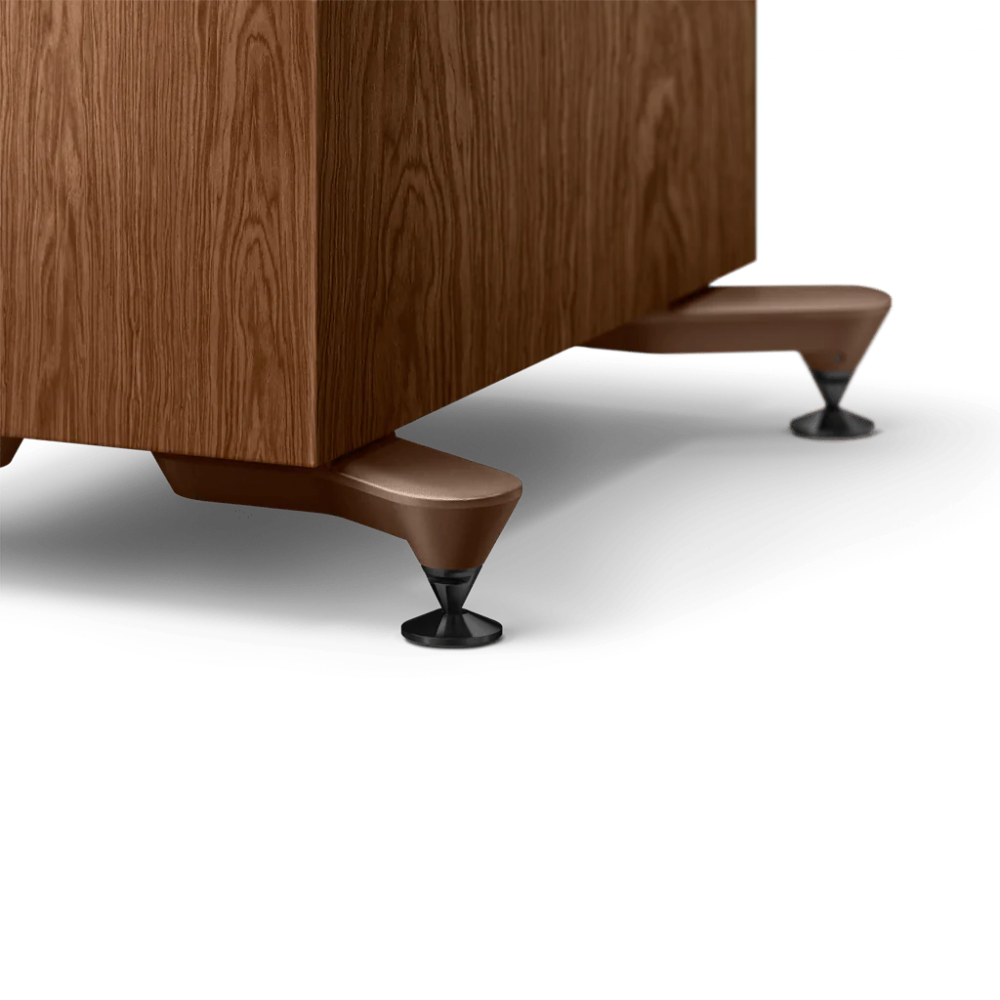

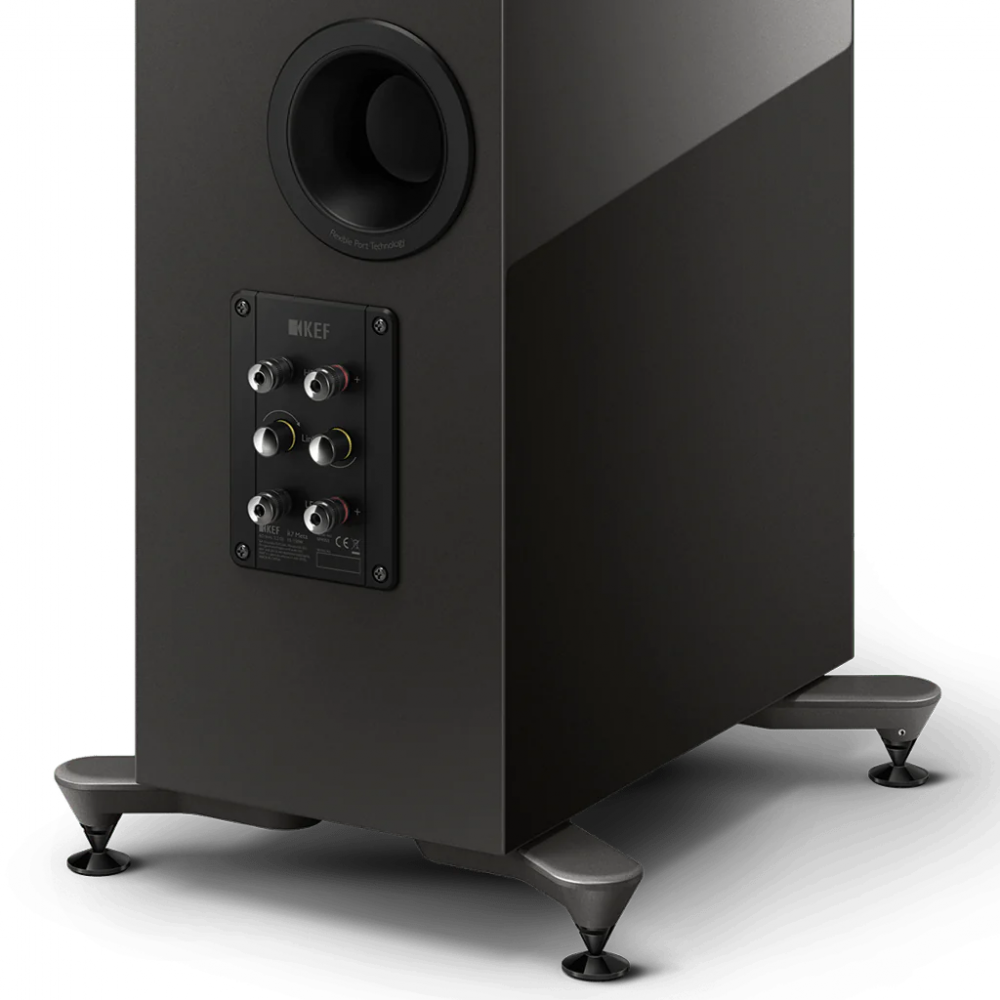

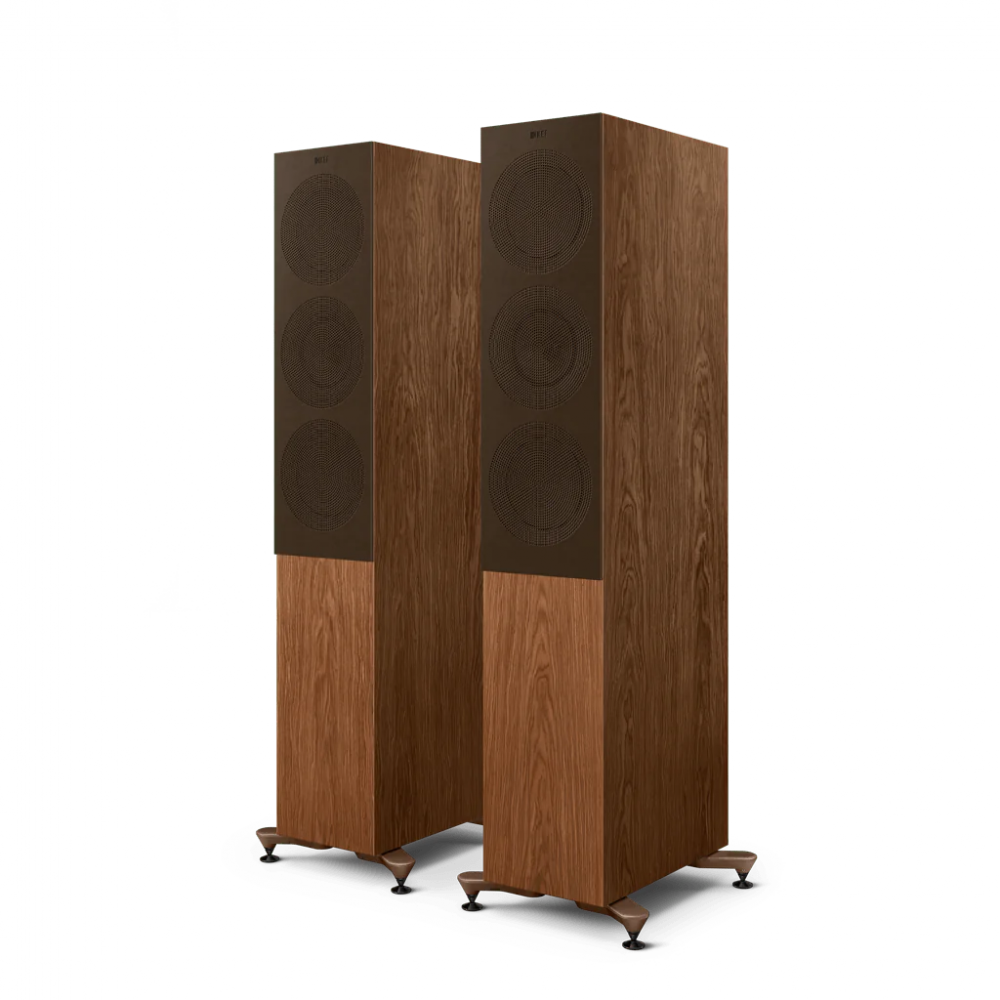

R7 Meta Microfiber grille Plinth and spike accessories Port bungs User manual and warranty information
Three-way bass reflex

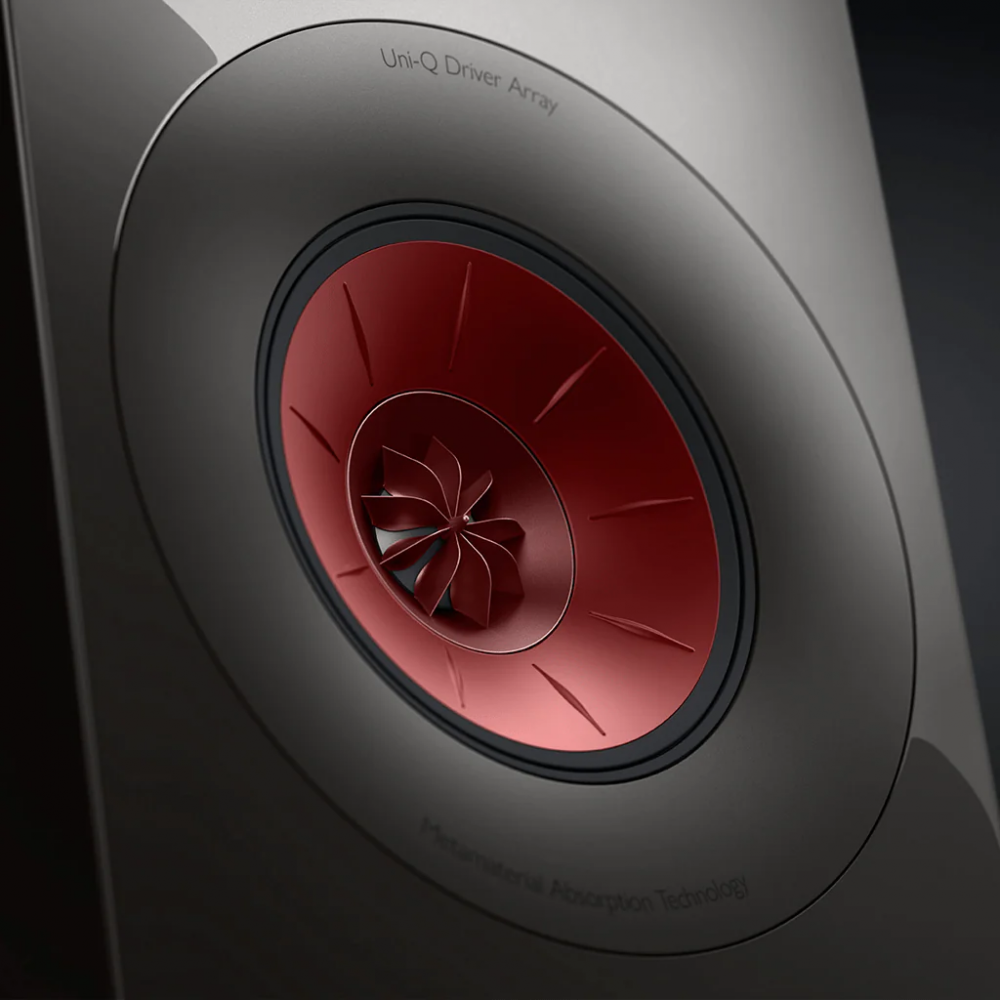

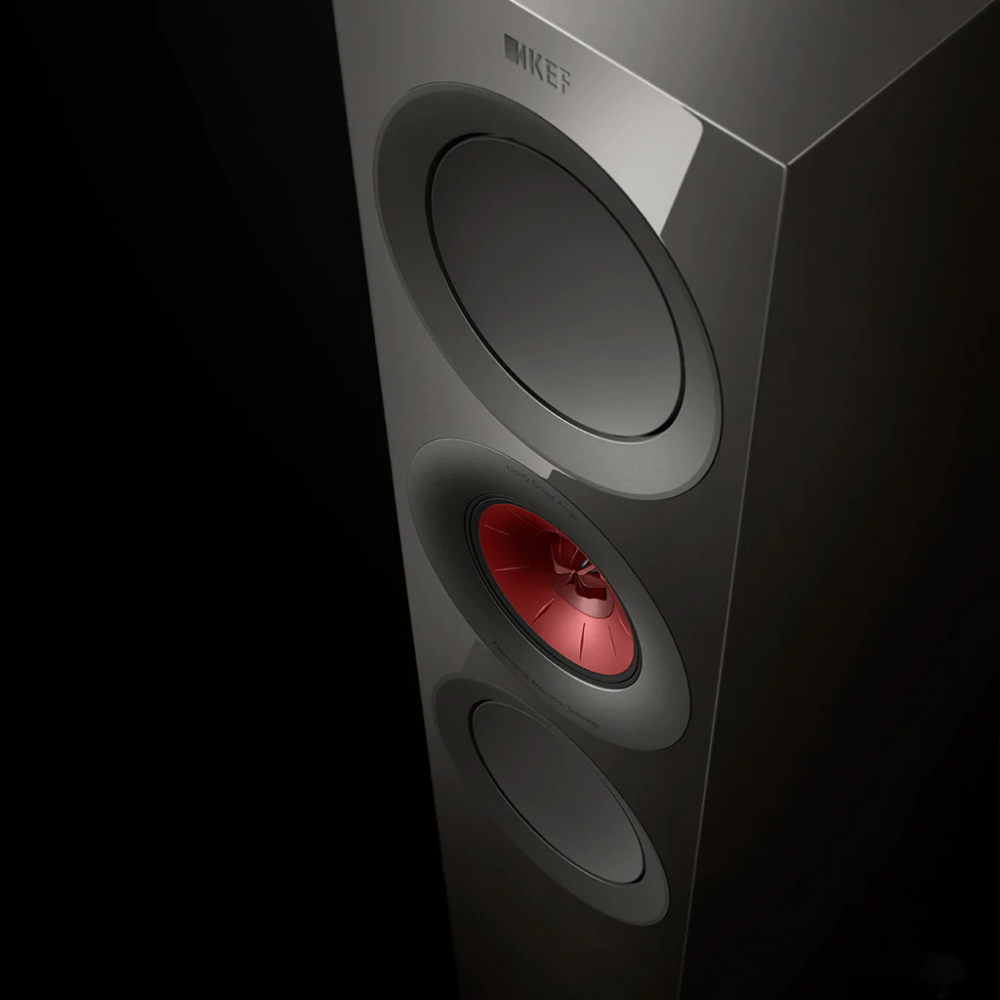

Uni-Q Driver Array: HF: 25 mm (1 in.) vented aluminium dome with MAT MF: 125 mm (5 in.) aluminium cone Bass Unit: LF: 2 x 165 mm (6.5 in.) hybrid aluminium cone
400 Hz, 2.4 kHz
FREQUENCY RANGE (-6dB)
33 Hz - 50 kHz
TYPICAL IN-ROOM BASS RESPONSE (-6dB)
FREQUENCY RESPONSE (±3dB)
48 Hz - 28 kHz
HARMONIC DISTORTION (90dB, 1m)
<1% 76 Hz and above <0.5% 110 Hz - 20 kHz
15 - 250W
4 Ω (min. 3.2 Ω)
DIMENSION (H x W x D) WITH TERMINAL WITH PLINTH *
1261 x 512 x 346 mm (H x W x D)

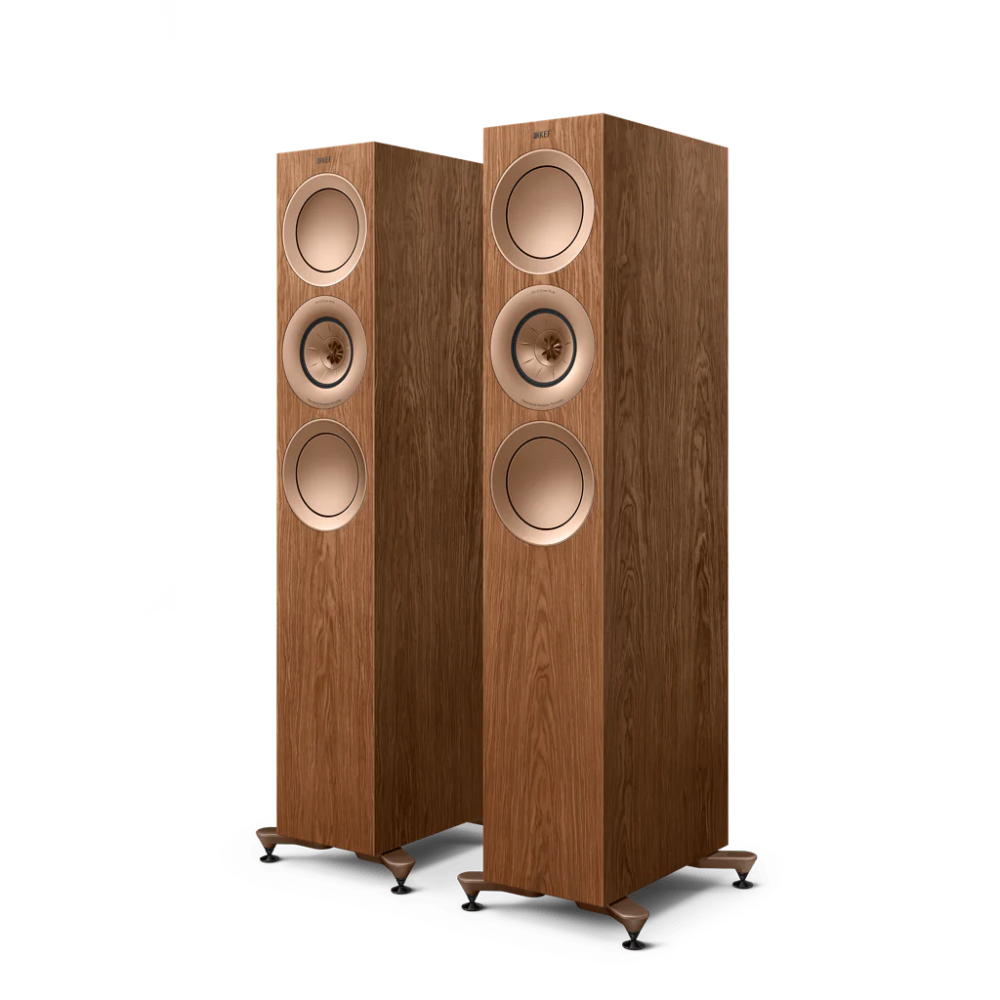

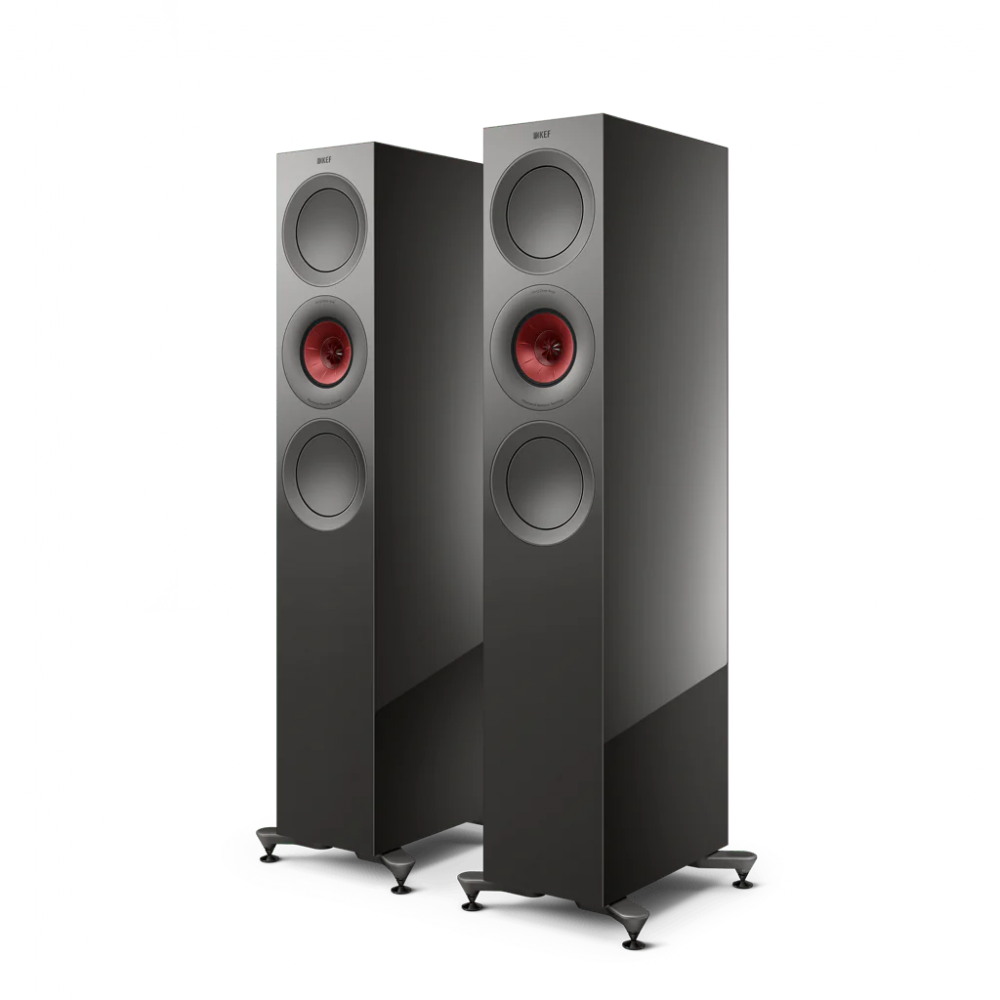

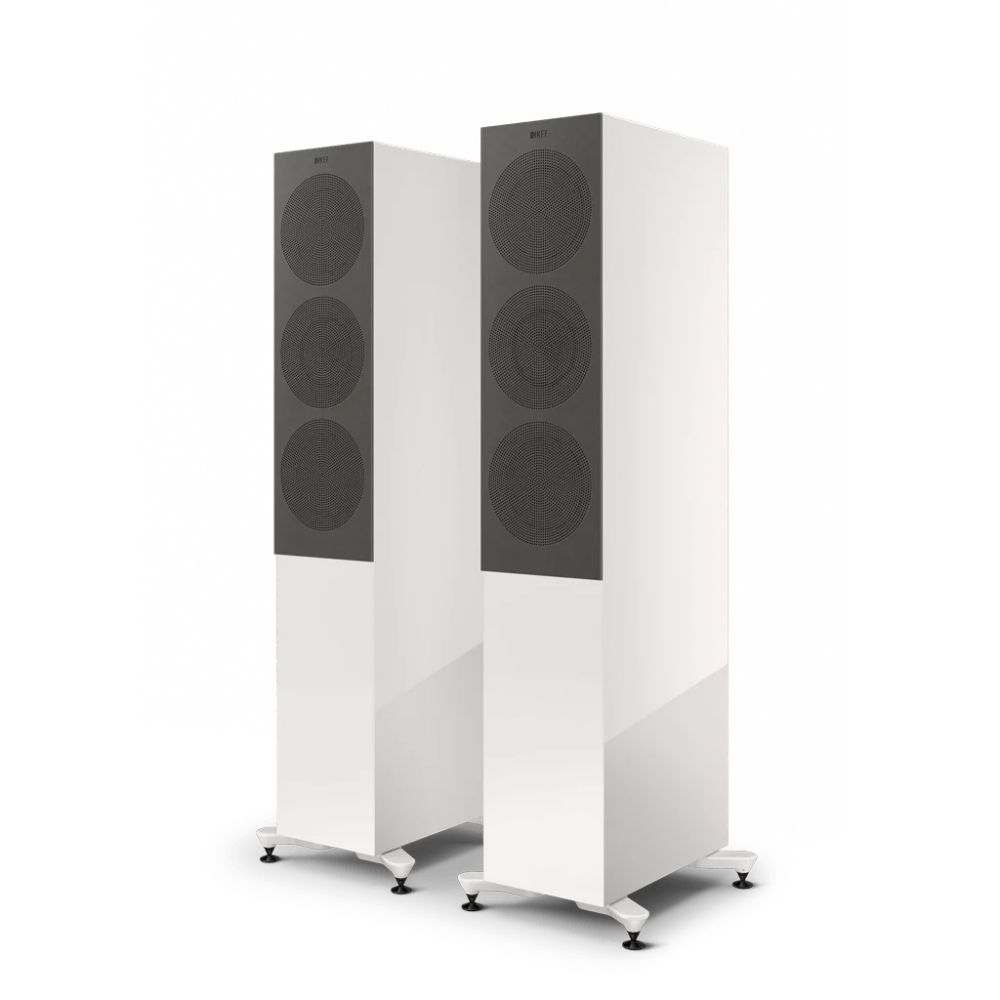

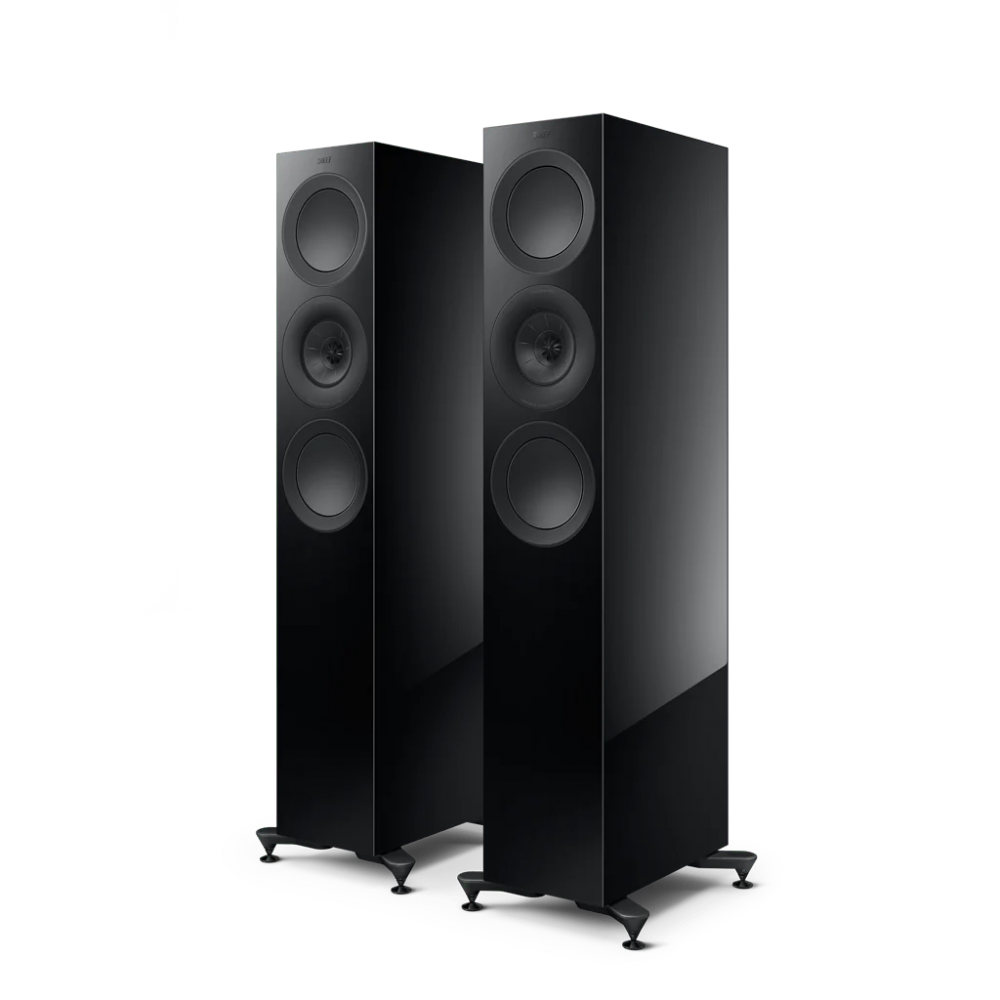

Black Gloss / White Gloss / Walnut / Titanium Gloss Special Edition
R Series User ManualR Series Information SheetR Series Brochure
* Measurement per unit
