Select a property

What is in the box

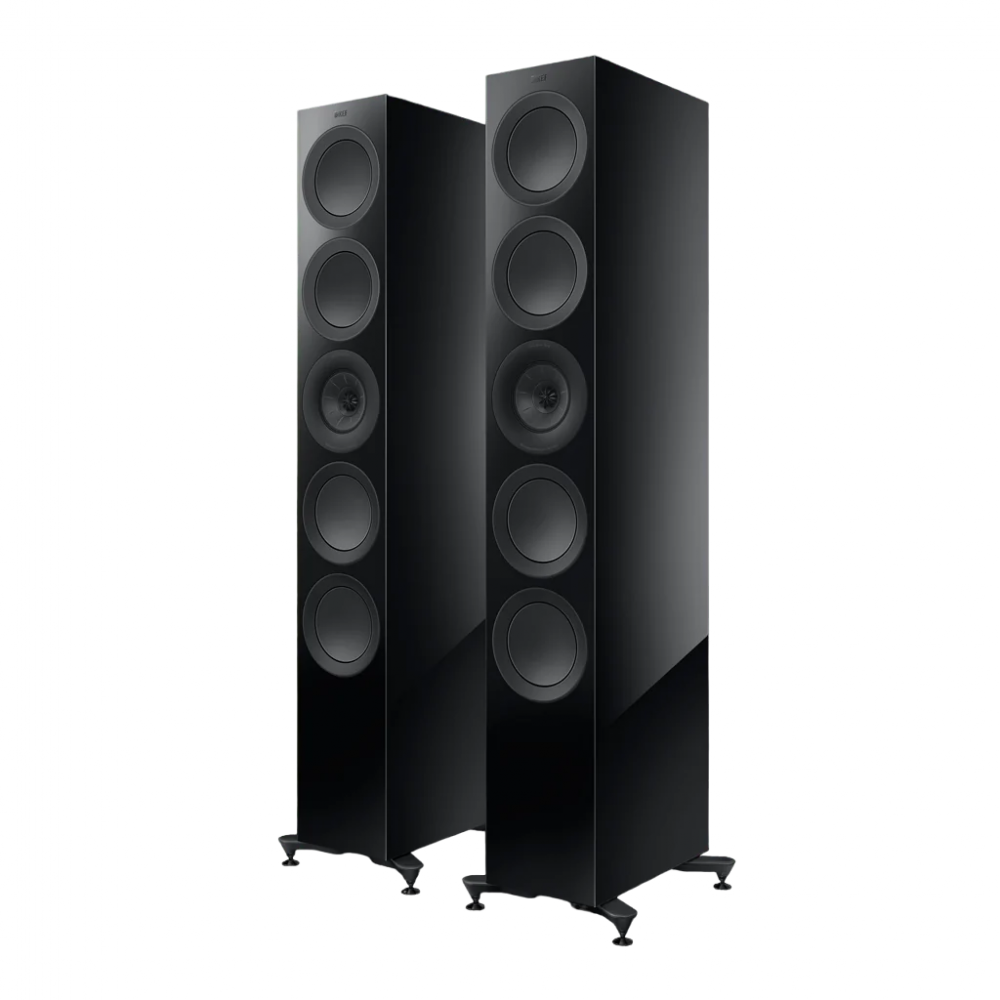

R11 Meta

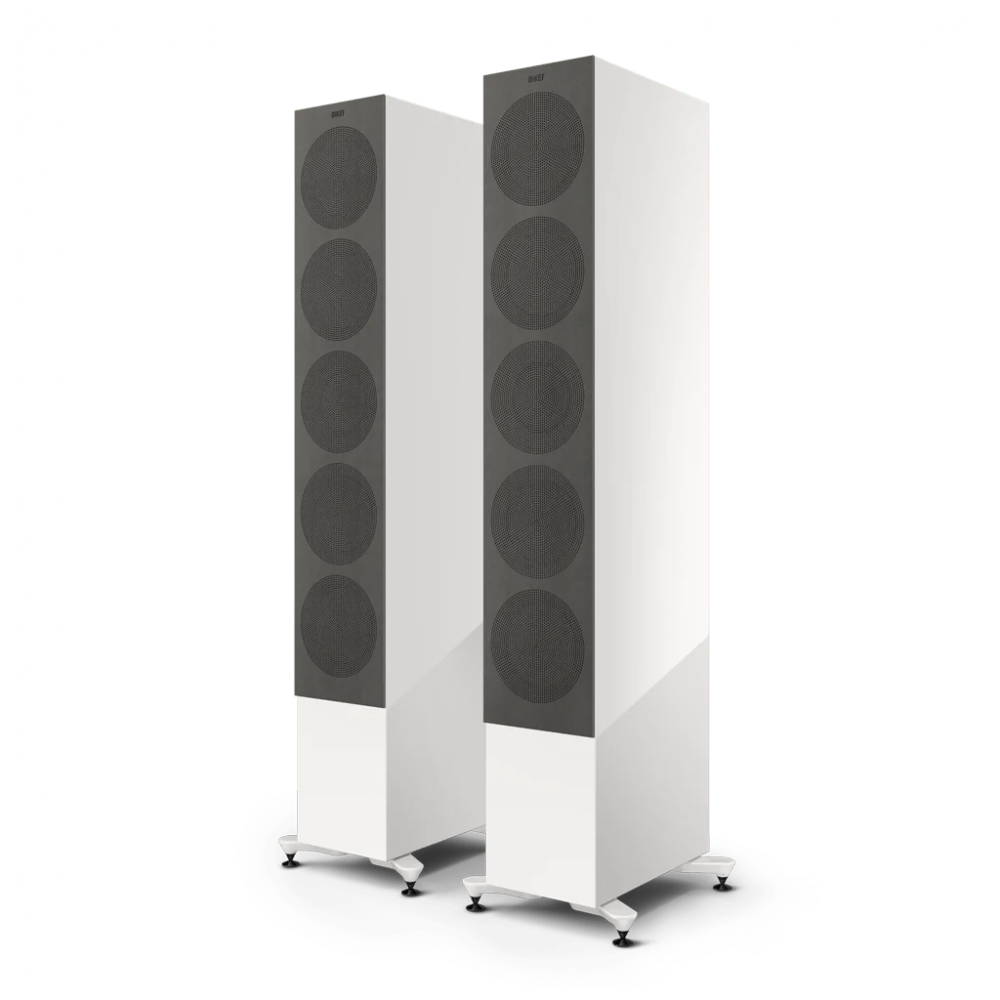

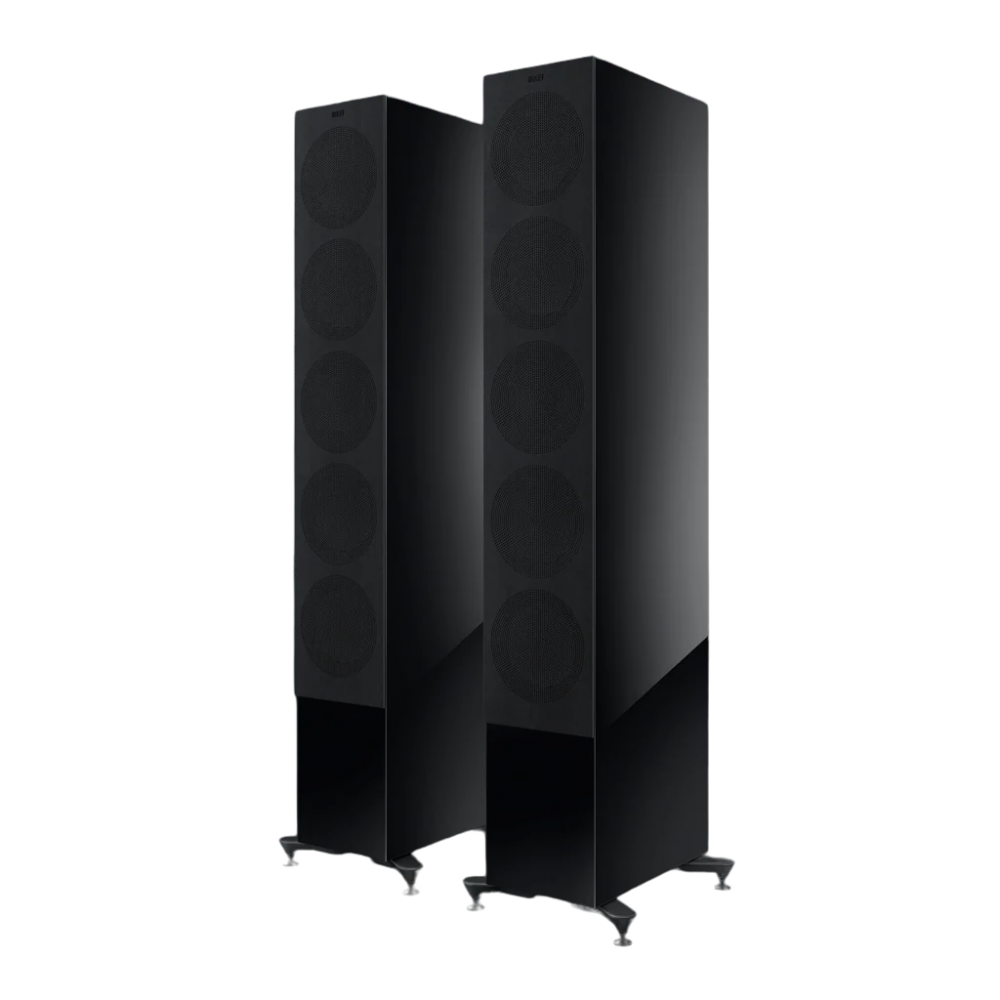

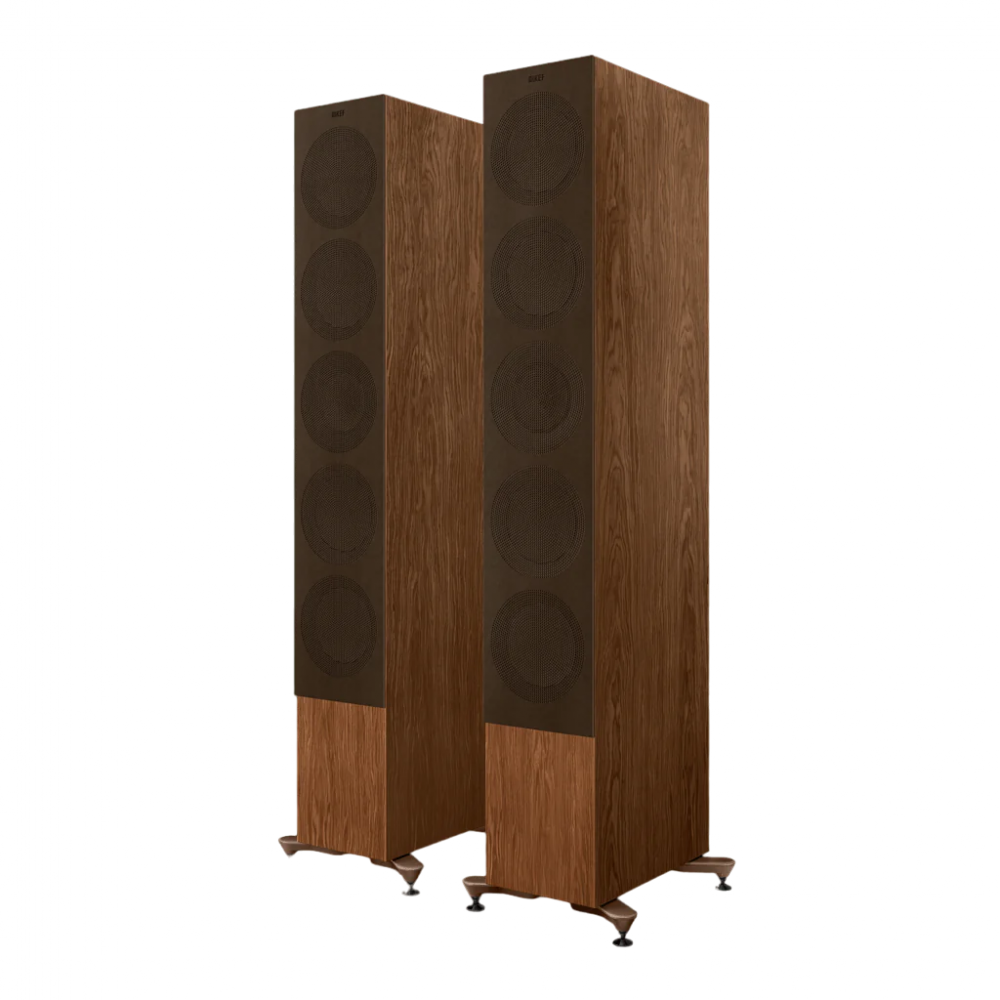

Microfiber grille

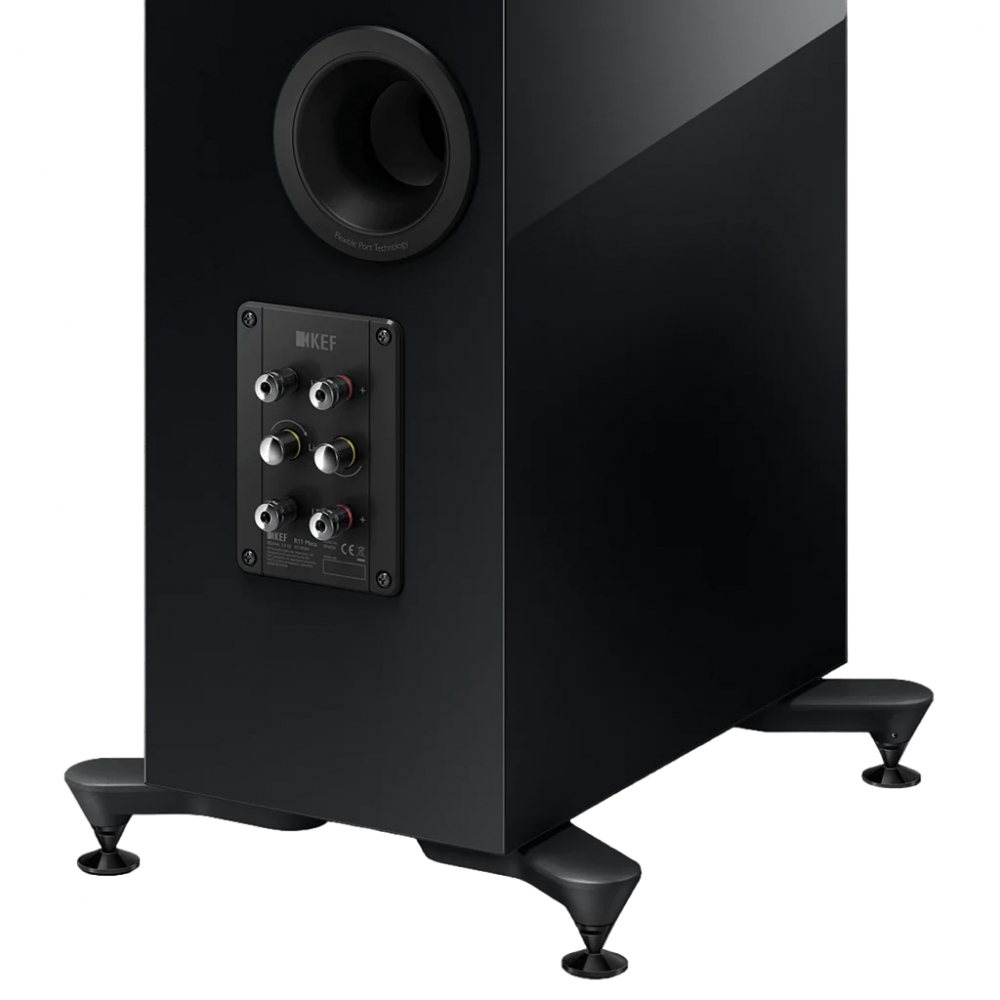

Plinth and spike accessories
Port bungs
User manual and warranty informationSelect a property

Listen and believe

Don’t just take our word for it. The best way to really appreciate the power of the R Series is to listen to it for yourself. Book a demo and experience the way the R Series immerses you in sound.



SPECIFICATIONS



DESIGN

Three-way bass reflex

DRIVE UNITS

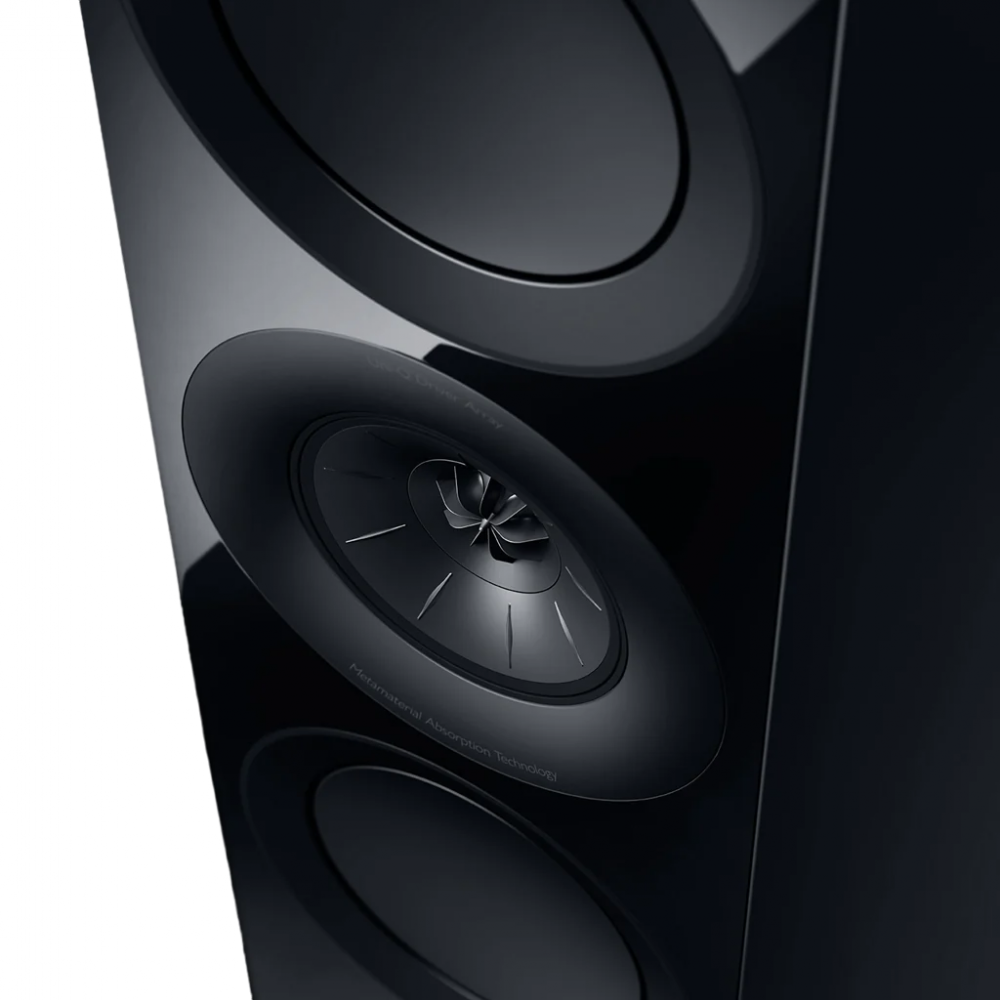

Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome with MAT
MF: 125 mm (5 in.) aluminium cone
Bass Unit:
LF: 4 x 165 mm (6.5 in.) hybrid aluminium cone

CROSSOVER FREQUENCY

330 Hz, 2.5 kHz

FREQUENCY RANGE (-6dB)

30 Hz - 50 kHz

TYPICAL IN-ROOM BASS RESPONSE (-6dB)

26 Hz

FREQUENCY RESPONSE (±3dB)

46 Hz - 28 kHz

HARMONIC DISTORTION (90dB, 1m)

<1% 33 Hz and above
<0.5% 80 Hz - 20 kHz

MAXIMUM OUTPUT

113 dB

AMPLIFIER REQUIREMENTS

15 - 300W

NOMINAL IMPEDANCE

4 Ω (min. 3.2 Ω)

SENSITIVITY (2.83V/1m)

90 dB

WEIGHT *

36.5 kg (80.5 lbs)

DIMENSION (H x W x D) WITH TERMINAL *

1249 x 200 x 384 mm (49.2 x 7.9 x 15.1 in.)

DIMENSION (H x W x D) WITH TERMINAL WITH PLINTH *

1296 x 311 x 384 mm (51.0 x 12.2 x 15.1 in.)

FINISHES

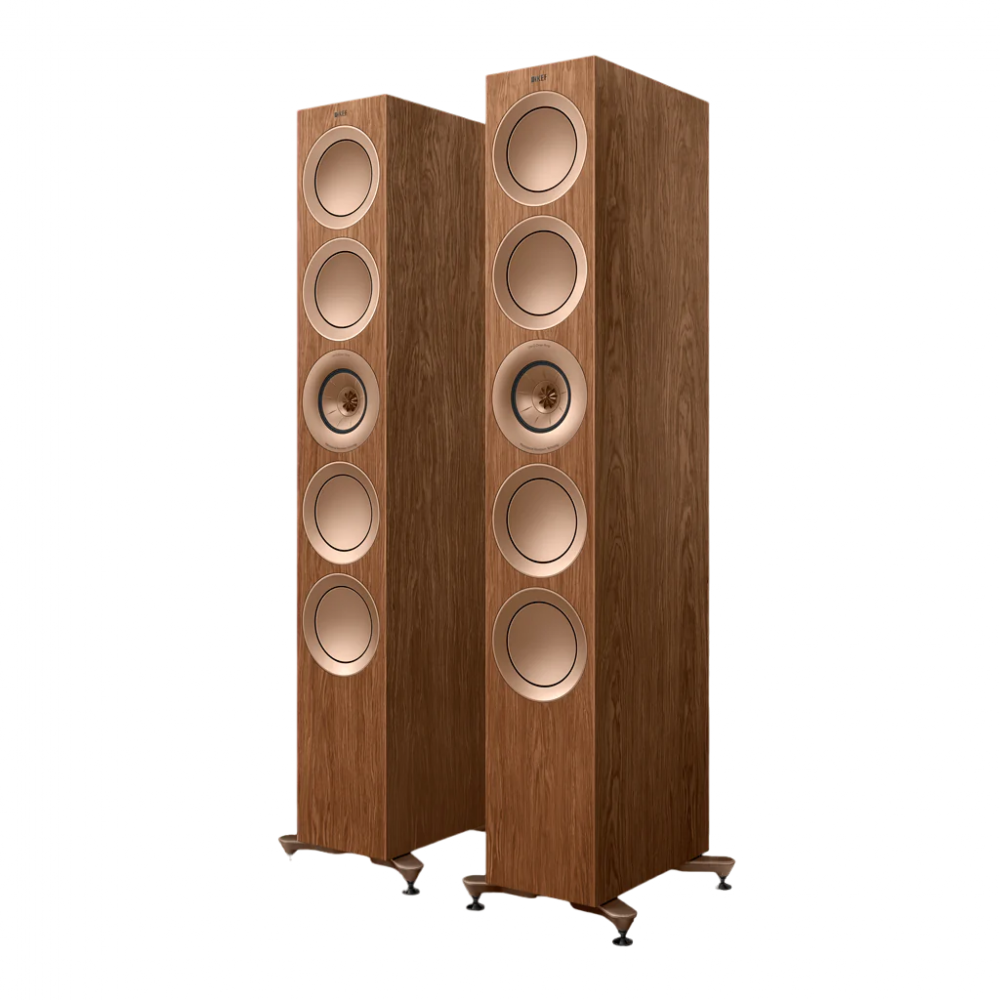

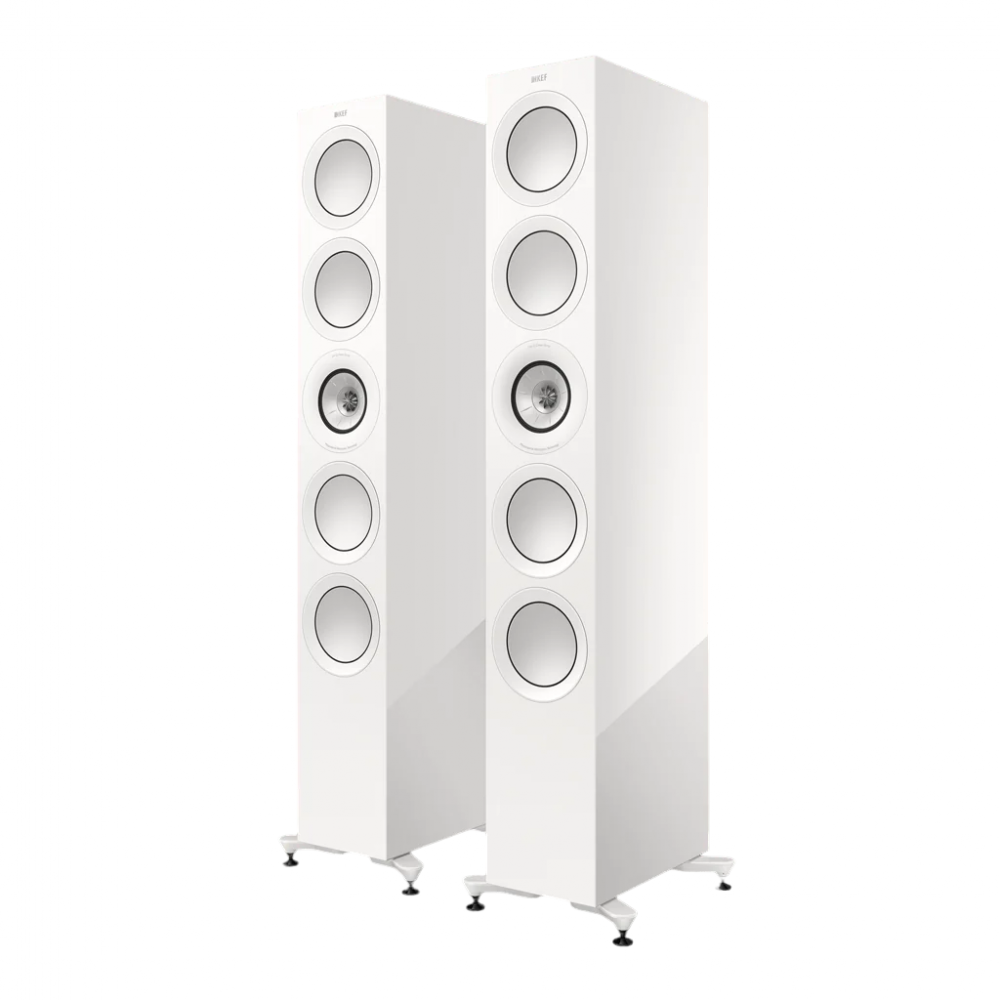

Black Gloss / White Gloss / Walnut

DOWNLOADS

R Series User ManualR Series Information SheetR Series White PaperR Series Brochure

Model R11
Design Three-way bass reflex
Drive Units Uni-Q Driver Array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium cone
Bass Driver:
LF: 4 x 165mm (6.5in.) hybrid aluminium
Crossover frequency 400Hz, 2.9kHz
Frequency range (-6dB)
Typical in-room bass response (-6dB)		 30Hz - 50kHz
26Hz
Frequency response (±3dB) 46Hz - 28kHz
Harmonic distortion (90dB, 1m) <0.3% 0.3% 120Hz - 20kHz
Maximum output 113dB
Amplifier power (recommended) 15 - 300W
Nominal Impedance 8Ω (min.3.2Ω)
Sensitivity (2.83V/1m) 90dB
Weight * 37.7 kg (83.1 lbs.)
Dimension (H x W x D)
with terminal *		 1249 x 200 x 383.5 mm
(49.2 x 7.9 x 15.1 in.)
Dimension (H x W x D)
with terminal with Plinth *		 1295.5 x 310.6 x 383.5 mm
(51 x 12.2 x 15.1 in.)
Finishes Black Gloss / White Gloss / Walnut
