Best Subwoofer - SuperSub Series

GoldenEar's best subwoofer, the new SuperSub™ Series models are ultra-high-performance yet amazingly compact subwoofers that incorporate many recently developed unique and advanced technologies and components. The goal was to create beautifully styled, finely finished, reasonably sized subwoofers that could generate very low-frequency pressure waves of extremely high amplitude, while delivering accurate and precise low-frequency performance that is both highly impactful and extremely musical.

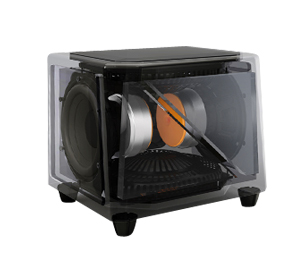

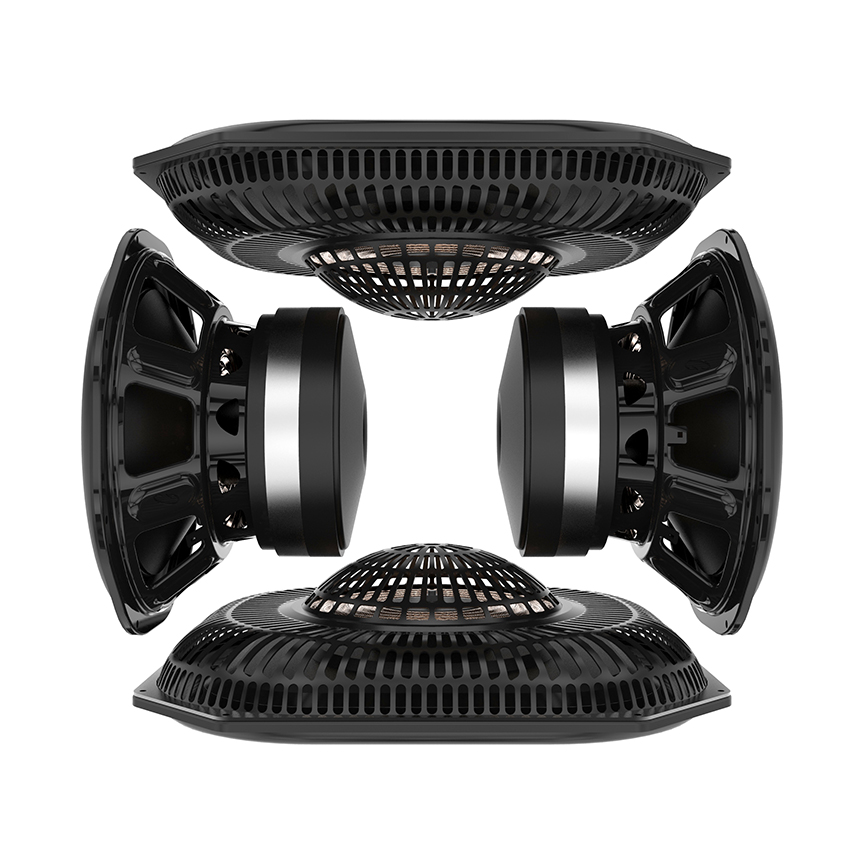

In order to achieve this, the SuperSubs, GoldenEar's best subwoofer series, incorporates a unique, patented* 360 degree dual-plane inertially-balanced driver and sub-bass radiator topology, combined with a very advanced electronics package. With two active drivers separated horizontally in space, as well as two passive radiators separated vertically, the driver-to-room coupling is distributed much more smoothly, for in-room bass performance that can’t typically be achieved with a single subwoofer.

The electronics packages that drive the SuperSubs' fully balanced array are a 1600 watt (XXL) and 1400 watt (X) Class D Digital amplifiers whose design is based on the technology originally developed for the GoldenEar Triton One tower. Features include: Discrete multi-band limiting,

phase-perfect equalization, fully balanced and advanced reconstruction filters and a strong focus on keeping latency to an absolute minimum. Input facilities include a direct-coupled, unfiltered LFE input for home theater, or stereo Left/Right low-level inputs with low-pass for two-channel setups. Sonically, the result of all this technology is a rock-solid bass response that is both exceptionally fast and tuneful for music and extraordinarily deep and powerful, in order to effortlessly reproduce the most extreme movie sound effects.

SuperSub Series Specifications



SUPERSUB XXL



SUPERSUB X

Dimensions
(height includes feet)

  19-3/4˝ (50 cm) W x
17-5/8˝ (44.6 cm) H x
15-7/8˝ (40.4 cm) D

  14˝ (35.6 cm) W x
12-3/4˝ (32.5 cm) H x
13-1/4˝ (33.5 cm) D

Weight   Product: 82 lbs (37.2 kg) /
Shipping: 93 lbs (42.2 kg)

  Product: 40 lbs (18.1 kg) /
Shipping: 51 lbs (23.1 kg)

Frequency Response   10 Hz - 250 Hz

  12 Hz - 250 Hz

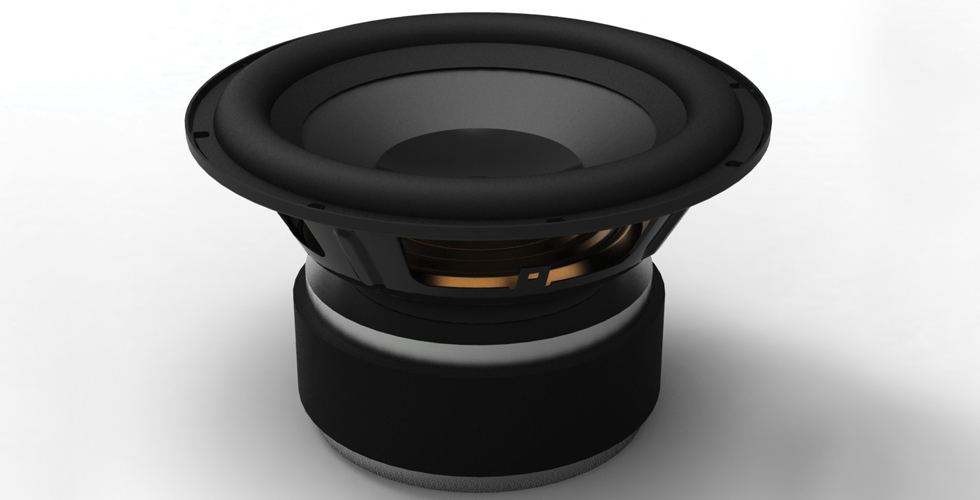

Driver Complement   Two 12˝ long-throw high-output
bass drivers

Two 13˝ x 15˝ quadratic planar
infrasonic radiators

  Two 8˝ long-throw high-output
bass drivers

Two 10-1/2˝ x 9-1/2˝ quadratic planar
infrasonic radiators

Amplifier   1600 Watt ForceField digital amplifier

  1400 Watt ForceField digital amplifier

LFE Line-Level Input   Unfiltered (no low pass), direct-coupled

  Unfiltered (no low pass), direct-coupled

Right/Left Line-Level Input   Variable Low-Pass from 40 Hz – 150 Hz

  Variable Low-Pass from 40 Hz – 150 Hz

Fuse Size   8-amp 250-volt slow blow fuse
(110-volt version)

6.3-amp 250-volt slow blow fuse
(240-volt version)

  6-amp 250-volt slow blow fuse
(110-volt version)

4-amp 250-volt slow blow fuse
(240-volt version)

Power Requirements/
Consumption

(approved for NA (TUV)
and the CE market.)
  Low Voltage Version – 120 V at 50 or
60 Hz / 1600 Watts

High Voltage Version – 240 V at 50 or
60 Hz / 1600 Watts


  Low Voltage Version – 120 V at 50 or
60 Hz / 1400 Watts

High Voltage Version – 240 V at 50 or
60 Hz / 1400 Watts
