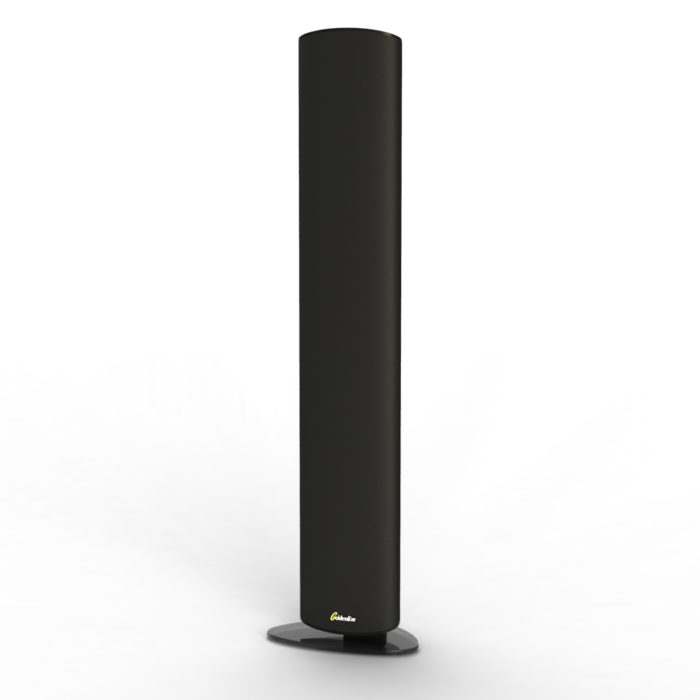

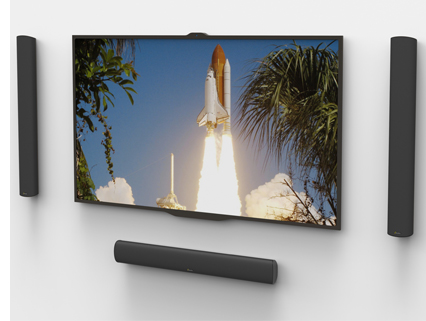

The SuperSat 50 is a slim, 27” long, 2.5”-deep speaker which is available in both a vertical version (on-wall or on optional Table/Shelf or Floor stand) as well as a horizontal, center-channel-optimized version, the SuperSat 50C. Its powerful and dynamic output capabilities make it the ideal center channel for a Triton based theater system, as well as a perfect choice to go alongside a wall- or shelf-mounted flat screen. Of course, the 2.5” depth makes it a perfect on-wall match for the new generation of super thin flat screens.

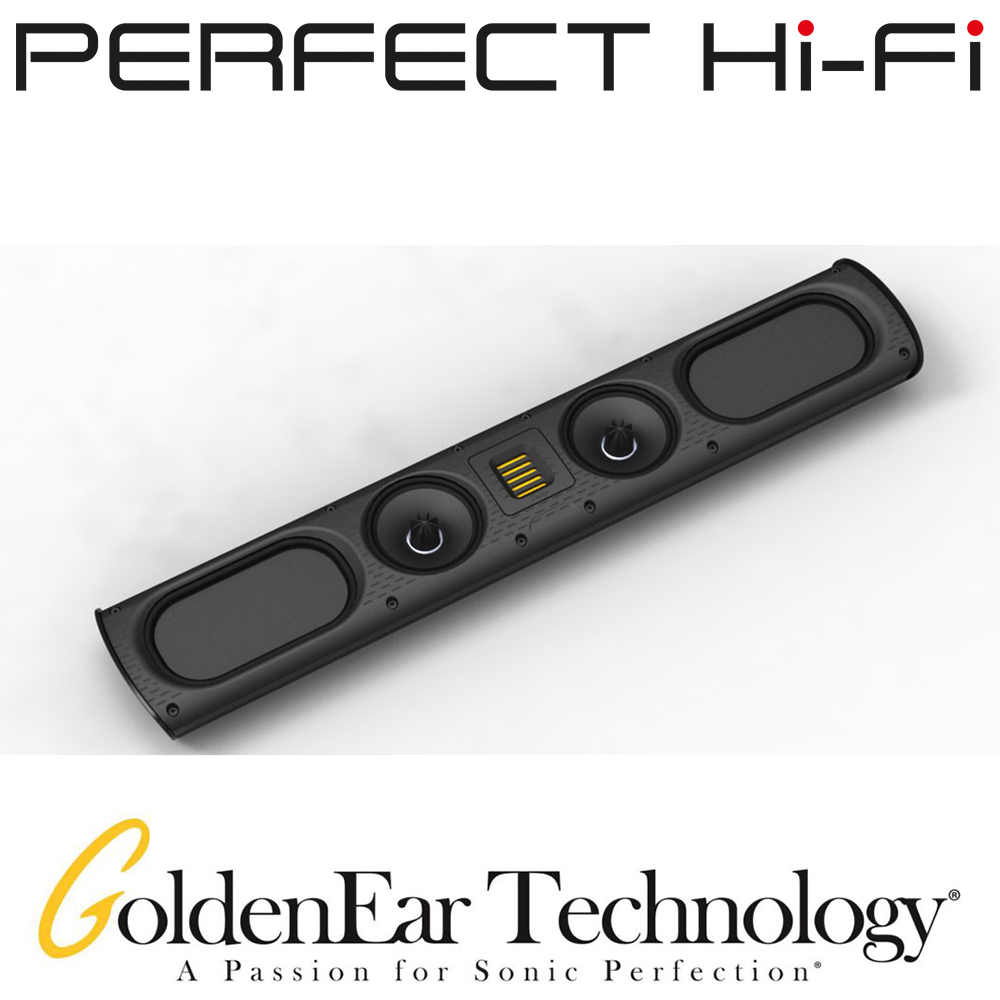

Its cabinet is constructed from piano-gloss-black-finished aerospace-grade aluminum and contains two GoldenEar 4.5” cast basket bass/midrange drivers with Multi-Vaned Phase Plug (MVPP) configured in a D’Appolito array, surrounding the High-Velocity Folded Ribbon tweeter. Two 4”x 7” quadratic planar low-frequency radiators complete the driver complement. Wall mounting is easily accomplished using the threaded inserts or keyhole mounts on the rear, or table top using the optional smoked-glass Table/Shelf Stand 50, or even floor standing using the optional SuperStand Floor Stand - note total height of speaker and floor stand is 48". The horizontal SuperSat 50C center-channel version includes adjustable leveling feet allowing for multiple angles when shelf/table top mounting. Click here to read the Brochure.
SuperSat Satellite Speakers Specifications
SUPERSAT 3/3C |
SUPERSAT 50/50C |
SUPERSAT 60/60C |
||||
Dimensions | 12˝ (30.5 cm) H (W) x 4-3/4˝ (12.1 cm) W (H) x 2-3/4˝ (7 cm) D |
26-3/4˝ (68 cm) H (W) x 4-3/4˝ (12.1 cm) W (H) x 2-1/2˝ (6.4 cm) D |
35˝ (88.9 cm) H (W) x 4-3/4˝ (12.1 cm) W (H) x 2-3/4˝ (7 cm) D |
|||
Weight | Product: 5 lbs (2.3 kg) / Shipping: 6 lbs (2.7 kg) |
Product: 7 lbs (3.2 kg) / Shipping: 8 lbs (3.6 kg) |
Product: 11 lbs (5 kg) / Shipping: 15 lbs (6.8 kg) |
|||
Frequency Response | 80 Hz - 35 kHz |
60 Hz - 35 kHz | 50 Hz - 35 kHz | |||
Efficiency | 92 dB |
92 dB | 92 dB | |||
Nominal Impedance | Compatible with 8 ohms | Compatible with 8 ohms |
Compatible with 8 ohms |
|||
Driver Complement | Two - 4-1/2˝ High-Definition Cast-Basket MVPP™ Mid/Bass Drivers One - HVFR™ High-Velocity Folded Ribbon Tweeter |
Two - 4-1/2˝ High-Definition Cast-Basket MVPP™ Mid/Bass Drivers Two - 4˝ x 7˝ Quadratic Planar Low-Frequency Radiators One - HVFR™ High-Velocity Folded Ribbon Tweeter |
Four - 4-1/2˝ High-Definition Cast-Basket MVPP™ Mid/Bass Drivers Two - 4˝ x 7˝ Quadratic Planar Low-Frequency Radiators One - HVFR™ High-Velocity Folded Ribbon Tweeter |
|||
Recommended Amplification | 20 - 200 watt/channel | 20 - 200 watt/channel | 20 - 300 watt/channel |
