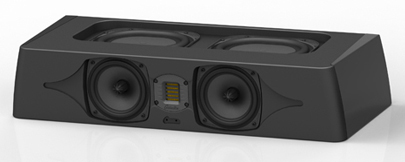

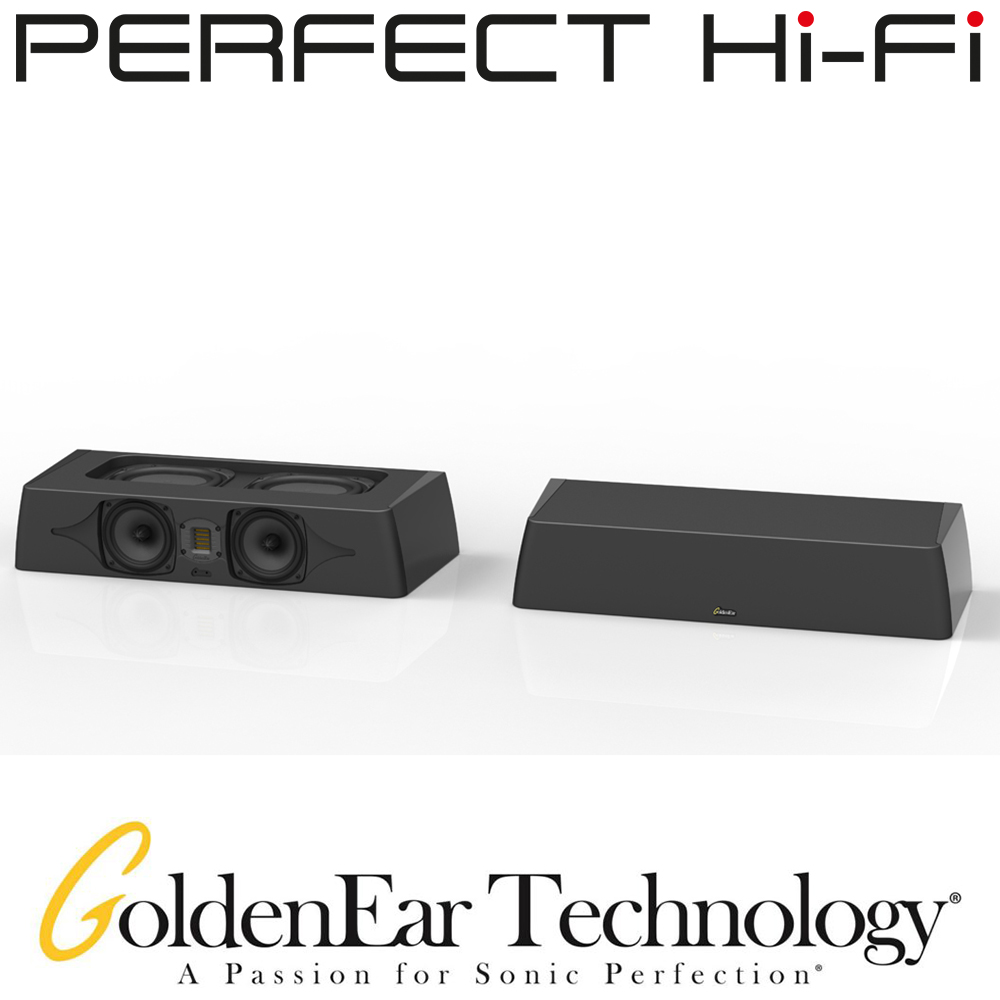

SuperCenter XL Center Channel Speaker
The larger SuperCenter XL center channel speaker benefits from dual 6-3/4˝ x 8˝ quadratic planar low frequency radiators, giving it significant low frequency extension and exceptional dynamic range. The SuperCenter XL is perfect for larger home theater systems. Click here to read the Brochure.
SuperCenter Specifications
SUPERCENTER X |
SUPERCENTER XL |
SUPERCENTER REFERENCE |
||||
| Dimensions | 20˝ (50.8 cm) W x 5-3/4˝ (14.6 cm) H x 11˝ (28.0 cm) D |
29˝ (73.5 cm) W x 5-3/4˝ (14.6 cm) H x 11˝ (28.0 cm) D |
35˝ (88.9 cm) W x 5-3⁄4˝ (14.6 cm) H x 11˝ (28 cm) D |
|||
| Weight | Product: 15 lbs (7 kg) / Shipping: 22 lbs (10 kg) |
Product: 21 lbs (9.5 kg) / Shipping: 28 lbs (12.7 kg) |
Product: 31 lbs (14 kg) / Shipping: 38 lbs (17.2 kg) |
|||
| Frequency Response | 45 Hz - 35 kHz |
36 Hz - 35 kHz | 33 Hz - 35 kHz |
|||
| Efficiency | 90 dB |
91 dB | 91 dB | |||
| Nominal Impedance | Compatible with 8 ohms |
Compatible with 8 ohms | Compatible with 8 ohms | |||
| Driver Complement | Two - 5-1/4˝ Cast-Basket Mid/Bass Drivers One - HVFR™ High-Velocity Folded One - 7˝ x 10˝ Quadratic Planar |
Two - 5-1/4˝ Cast-Basket Mid/Bass Drivers One - HVFR™ High-Velocity Folded Two - 6-3/4˝ x 8˝ Quadratic Planar |
Four - 5-1/4˝ Cast-Basket Mid/Bass Drivers One - High-Gauss Reference HVFR™ High-Velocity Folded Two - 6-3/4˝ x 8˝ Quadratic Planar One - 7˝ x 10˝ Quadratic Planar |
|||
| Recommended Amplification | 20 - 200 watt/channel |
20 - 250 watt/channel | 20 - 350 watt/channel |
