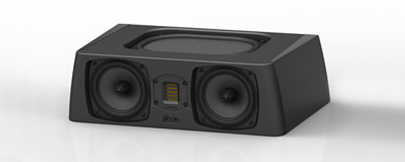

SuperCenter X Center Channel Speaker
Our smallest SuperCenter model is an amazingly compact center channel speaker. The SuperCenter X incorporates one 7˝ x 10˝ quadratic planar low frequency radiator for surprisingly full-range performance from a modest sized enclosure. The SuperCenter X is just the perfect size and performance for the typical size living room or family room home theater system. Click here to read the Brochure.
SuperCenter Specifications
SUPERCENTER X |
SUPERCENTER XL |
SUPERCENTER REFERENCE |
||||
| Dimensions | 20˝ (50.8 cm) W x 5-3/4˝ (14.6 cm) H x 11˝ (28.0 cm) D |
29˝ (73.5 cm) W x 5-3/4˝ (14.6 cm) H x 11˝ (28.0 cm) D |
35˝ (88.9 cm) W x 5-3⁄4˝ (14.6 cm) H x 11˝ (28 cm) D |
|||
| Weight | Product: 15 lbs (7 kg) / Shipping: 22 lbs (10 kg) |
Product: 21 lbs (9.5 kg) / Shipping: 28 lbs (12.7 kg) |
Product: 31 lbs (14 kg) / Shipping: 38 lbs (17.2 kg) |
|||
| Frequency Response | 45 Hz - 35 kHz |
36 Hz - 35 kHz | 33 Hz - 35 kHz |
|||
| Efficiency | 90 dB |
91 dB | 91 dB | |||
| Nominal Impedance | Compatible with 8 ohms |
Compatible with 8 ohms | Compatible with 8 ohms | |||
| Driver Complement | Two - 5-1/4˝ Cast-Basket Mid/Bass Drivers One - HVFR™ High-Velocity Folded One - 7˝ x 10˝ Quadratic Planar |
Two - 5-1/4˝ Cast-Basket Mid/Bass Drivers One - HVFR™ High-Velocity Folded Two - 6-3/4˝ x 8˝ Quadratic Planar |
Four - 5-1/4˝ Cast-Basket Mid/Bass Drivers One - High-Gauss Reference HVFR™ High-Velocity Folded Two - 6-3/4˝ x 8˝ Quadratic Planar One - 7˝ x 10˝ Quadratic Planar |
|||
| Recommended Amplification | 20 - 200 watt/channel |
20 - 250 watt/channel | 20 - 350 watt/channel |
