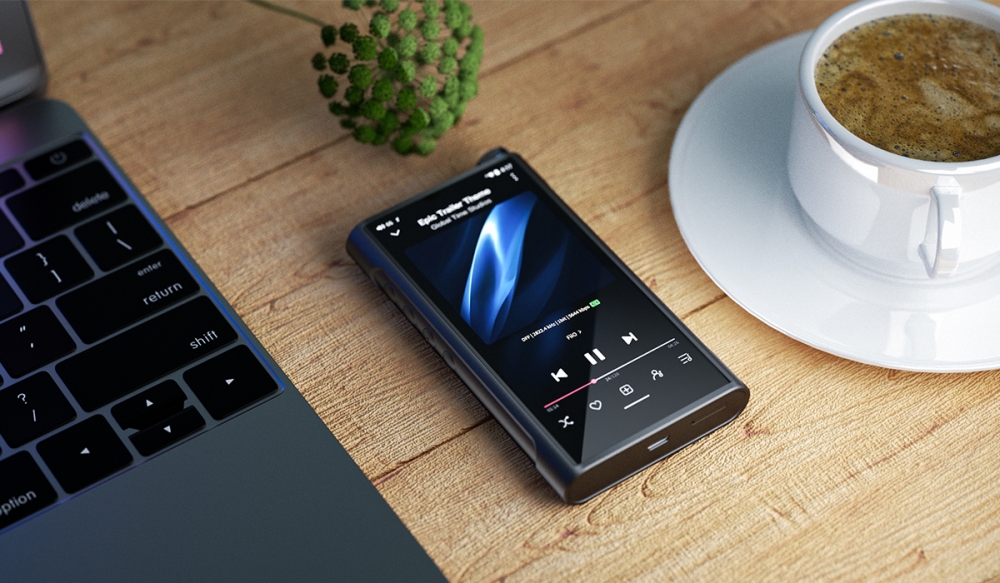

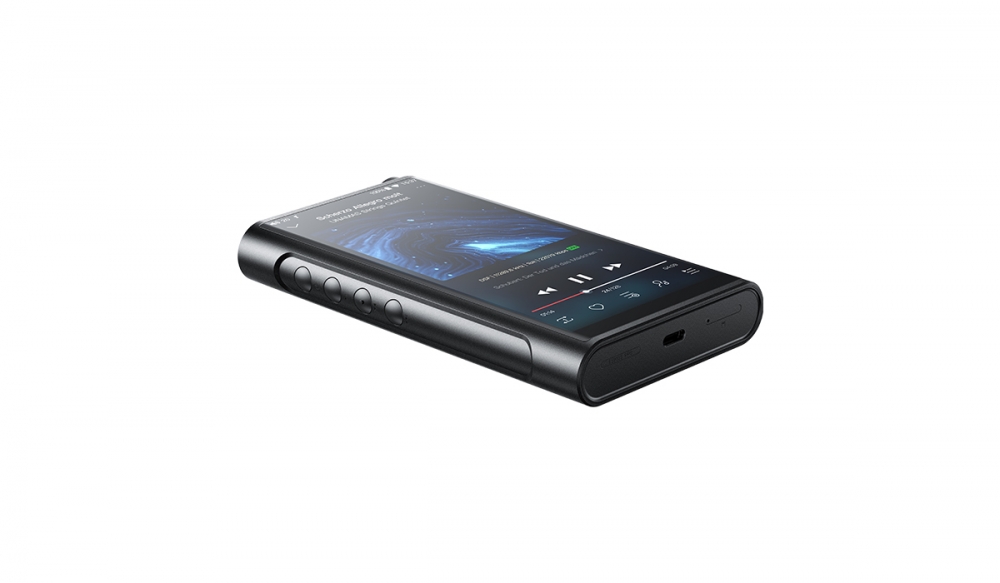

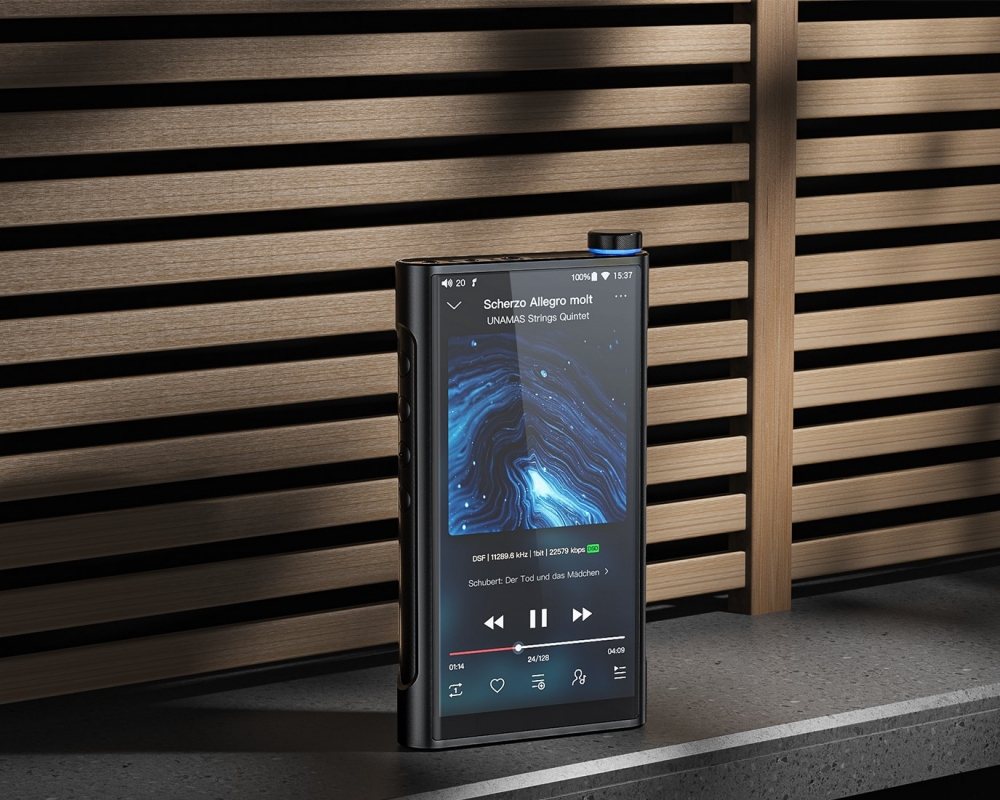

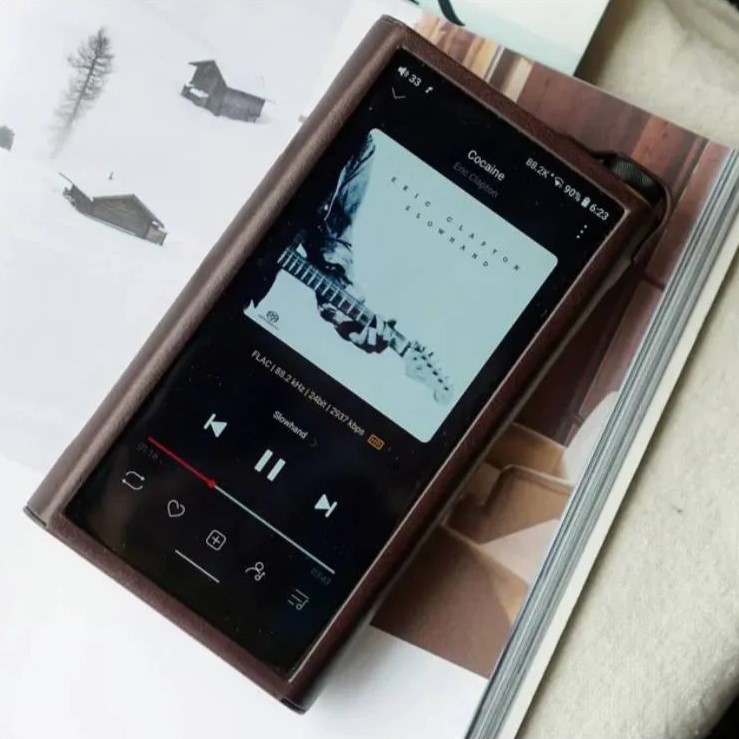

Fiio M15S (2023) Portable Hi-Res Android Lossless Music Player DAP ES9038PRO DAC QCC5124 Qualcomm 660 MQA

- Desktop/Portable Dual Power Supplies
- High-performance ES9038PRO 8-channel DAC
- QCC5124 with Full Bluetooth Format support
- Qualcomm 660 SOC + Android 10 OS
- 1200mW + 1200mW Continuous Output Power

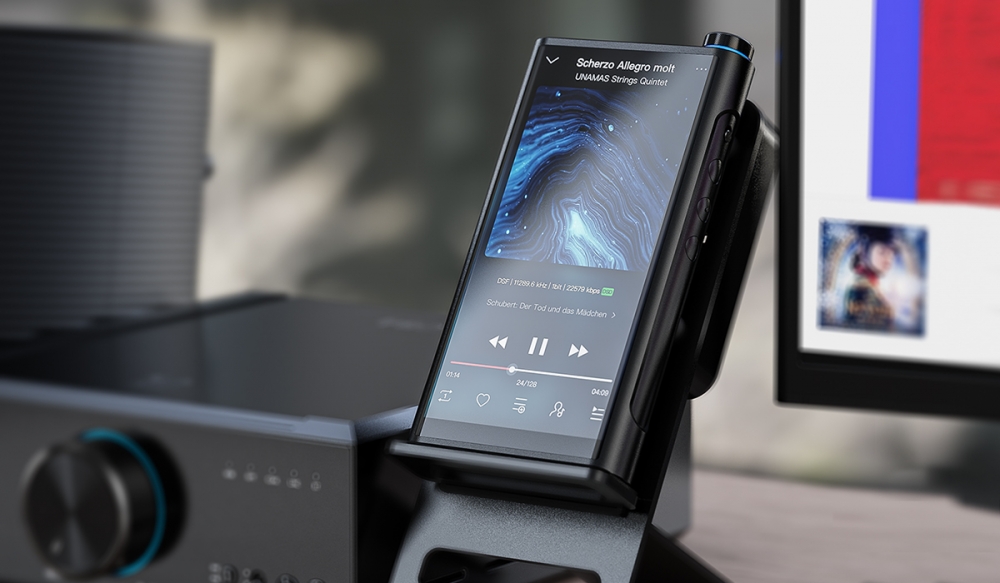

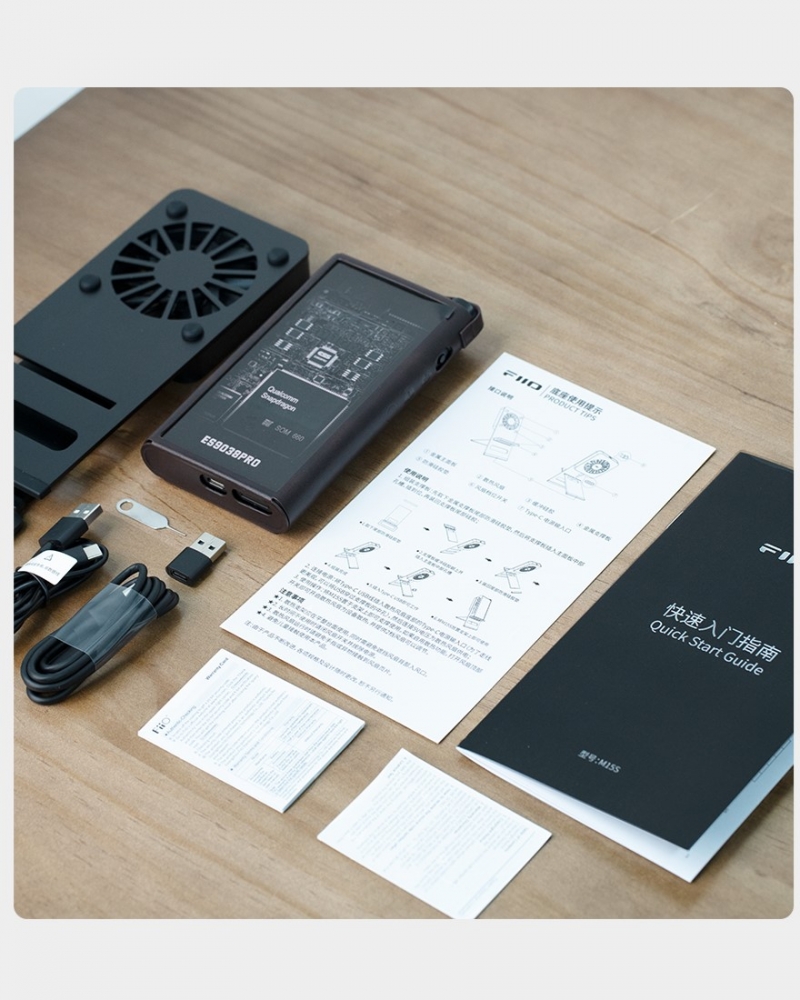

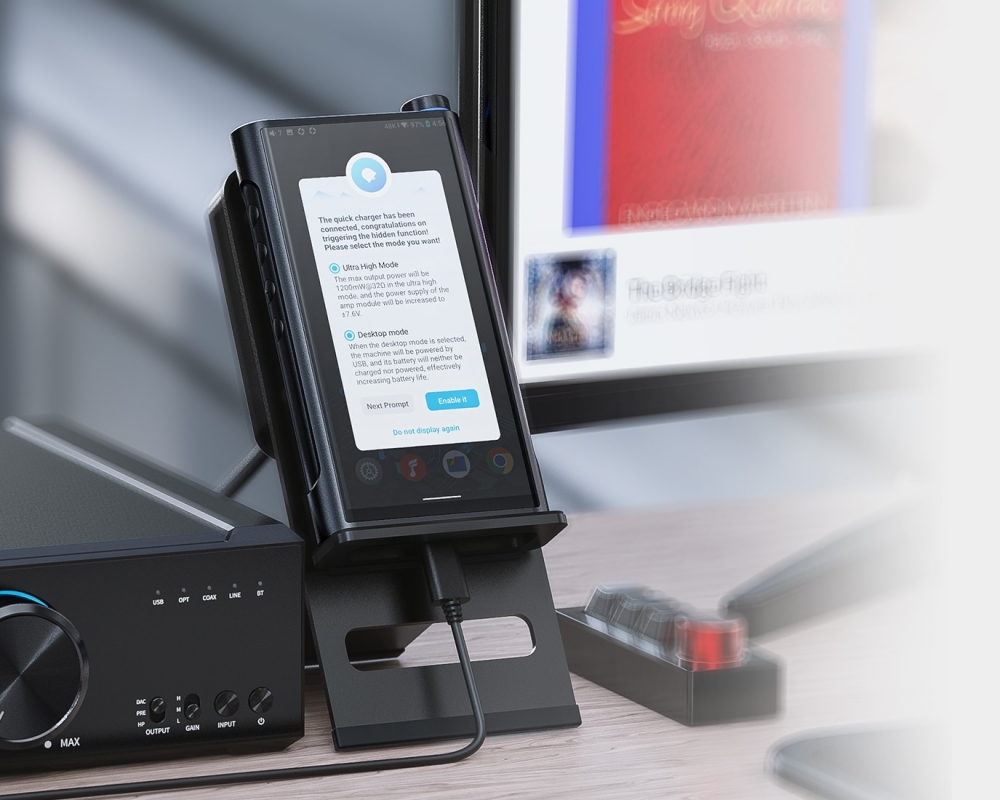

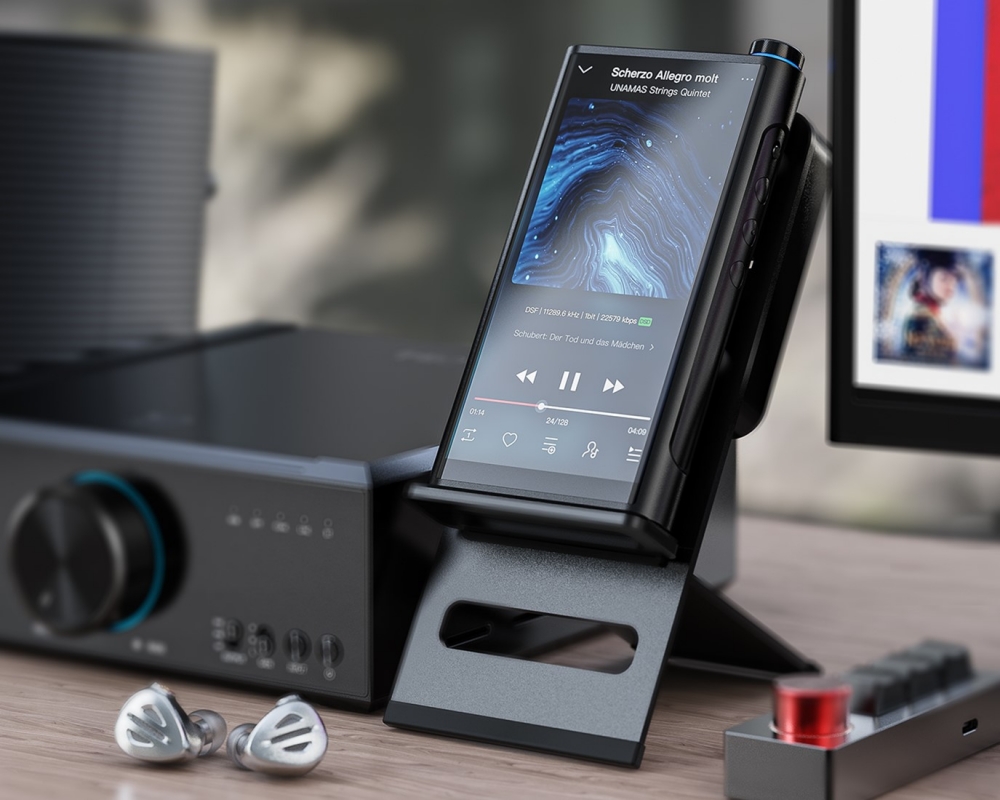

- DK3S Dock Included
- Five Gain Levels
- Six operating modes including Roon Ready

Portable Desktop-Level Machine - M15S
The "desktop/portable dual power supply modes" as featured on the portable desktop-grade player M17 and the portable desktop-grade amp Q7 have been well-received by the audiophile community, which is why we sought to put this technology on other products.
Now, with the implementation of the dual power supply modes onto the M15 with its more ergonomic design, the M15S is the ideal combination of portability and high performance.

High-performance ES9038PRO DAC Desktop-grade part
The full, uncut desktop ES9038PRO DAC chip with eight independent D/A converters is employed in the M15S. Each channel uses four D/A converters in parallel to form a fuly differential output, for a truly rich and highly resolving sound.

Qualcomm 660 SOC + Android 10 , no global SRC
6200mAh Battery Capacity (about 3.5 hours charging time, QC3.0+PD Fast Charging Protocols, 9 to 10.5 hours of battery life)

SPECIFICATIONS

Model: M15s
SOC: Snapdragon 660
DAC: ES9038PRO
Amplifier: OPA926 *2
Crystal Oscillator: NDK Femtosecond Crystal Oscillator *2
Working mode: Android Mode / Pure Music Mode / USB DAC Mode / Bluetooth Receiving Mode / Airplay Mode / Roon Ready
Weight: about 345g
Colour: Black
Volume Control Type: Button Control or Knob Control
Size: about 140mm x 80mm x 18.9mm

Storage: 64GB / 46GB after deducting OS
RAM: 4GB
Expandable Memory: Single TF Card Slot, up to 2TB (theoretically)

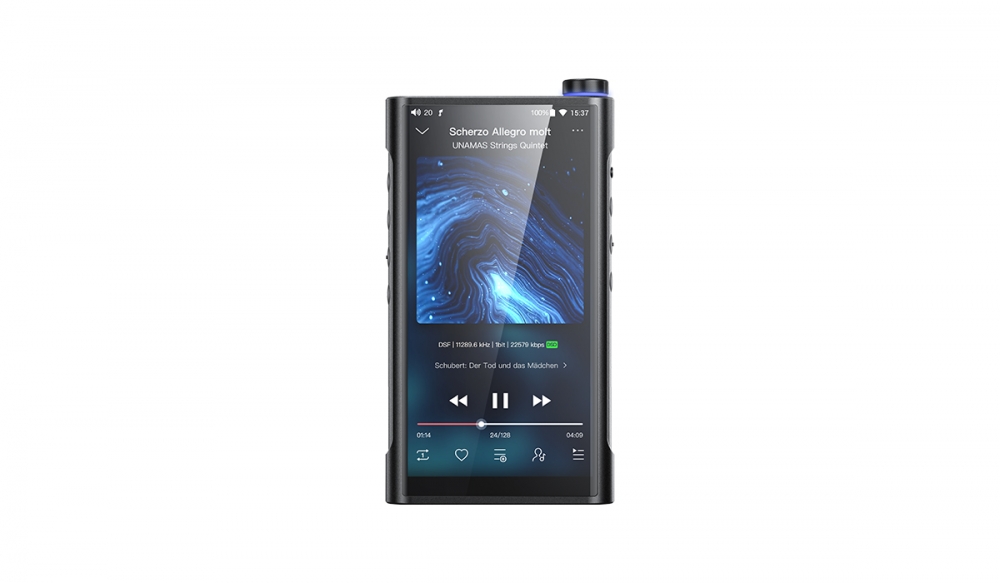

Screen: 5.5 inch (1440 x 720) Full-fit Screen
Gain: Low, Medium, High, Super High, Ultra High (Quick Charge)
Recommended Headphone Impedance: 8 to 150 ohms (single-ended output) / 8 to 350 ohms (balanced output)
Channel BAlance: L20 ~ R20 (0.5dB per level)

USB: Type C USB 3.0 (charging/data)
Phone Outputs: 3.5mm (S-E), 2.5mm (BAL), 4.4mm (BAL)
Line Outputs: 3.5mm Line Out (S-E, shared with PO ports), 2.5mm + 4.4mm (Balanced, shared with PO ports)
Digital Output: USB (Type C, up to DSD512 DOP/D2P/Native, PCM 32bit-768kHz), Coaxial (3.5mm, 4 pole, up to DSD128, PCM 32bit-384kHz)

WIFI: 2.4GHz/5GHz (DLNA transmit/receive, Airplay, Wifi Transmission, Roon ready)
Bluetooth Transmit: 5.0 (SBC, AAC, aptX, aptX HD, LDAC, LHDC)
Bluetooth Receive: 5.0 (SBC, AAC, aptX, aptX HD, aptX LL, LDAC, aptX Adaptive)
MQA: Global 8x decoding
