Power aplenty

Don’t let its size fool you, MXW70 offers 70 Watts per channel of refined stereo power, bridgeable into mono mode for an impressive 250 Watts.

Super-compact system

Combine the MXW70 with our award-winning MXN10 Music Streamer to form a complete compact streaming hi-fi stack. Add the DacMagic 200M DAC for further digital clarity and a hi-res headphone output.

Small yet mighty

Designed in London, MXW70 has been meticulously engineered to deliver outstanding high-fidelity amplification from a compact case that can fit into an existing setup or form the basis for a minuscule modern system.

Streaming simplicity, hi-fi sound

Hypex NCore Class D Amplification

MXW70’s efficient Class D amplification delivers smooth, dynamic, and powerful audio, easily driving a range of speakers.

Compact footprint

At just 215mm wide, MXW70 conveniently fits wherever you need it, whether on a desk, in an entertainment unit or tucked away in a cupboard.

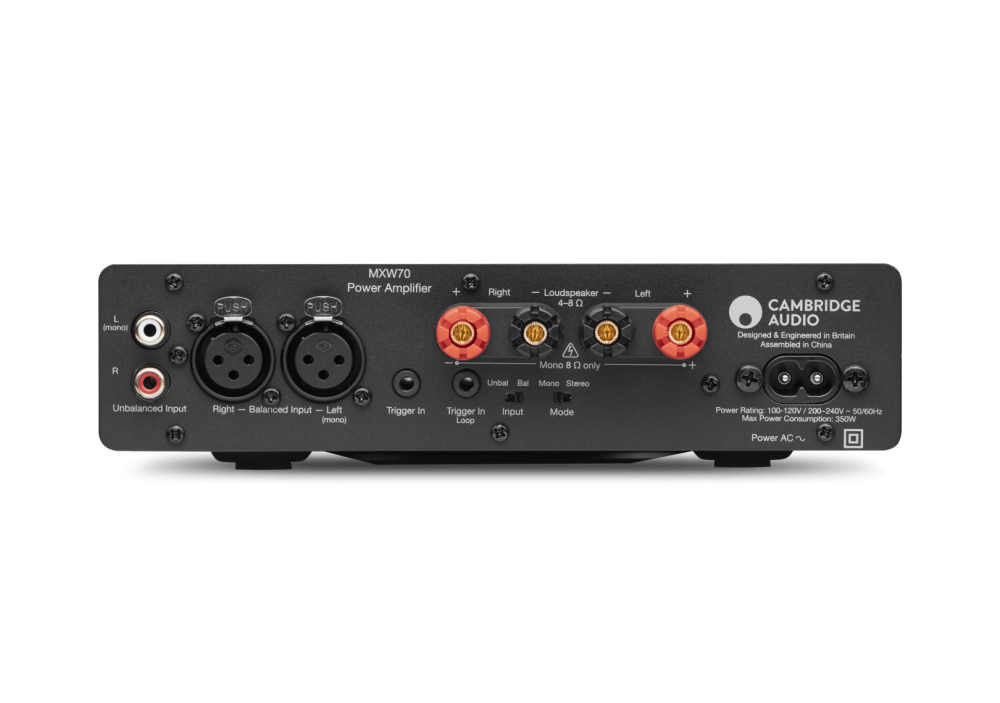

Wired for sound

As well as high-quality speaker outputs and stereo RCA inputs, MXW70 offers premium XLR inputs for noise-free, studio-grade signal transmission.

Full metal jacket

No compromises have been made in the build of our half-width champions. MXW70 features premium all-metal casework with a minimalist timeless design, flawlessly finished in our trademark Lunar Grey.

Technical specification

Power output

2x70W (8ohm stereo), 2x 125W (4ohm stereo), 250W (8ohm mono)

Speaker outputs

1 set

Other outputs

12v Trigger pass-through

Thd+n (unweighted)

<0.015% @ 5W/8ohm

S/n ratio (ref 1w - 20k bw)

>92dB (XLR), >89dB (RCA)

Crosstalk @1khz

<-82dB

Gain

22.2dB (XLR), 28.8dB (RCA)

Input sensitivity

3.6V (mono XLR), 1.65V (mono RCA), 0.9V (stereo RCA), 1.9V (stereo XLR)

Input impedances

22kohm (RCA), 35kohm (XLR)

Power amp damping factor

>180 @ 1kHz 8ohm

Max power consumption

300w

Standby power consumption

<0.5W

Dimensions (h x w x d)

57 x 215 x 215mm

Weight

1.65kg

In the box

Power cords, Welcome letter, Registration Card, Safety guide
