Cambridge Audio has added a new integrated amplifier to its AX series, which follows in the footsteps of its award-winning Edge and CX ranges.

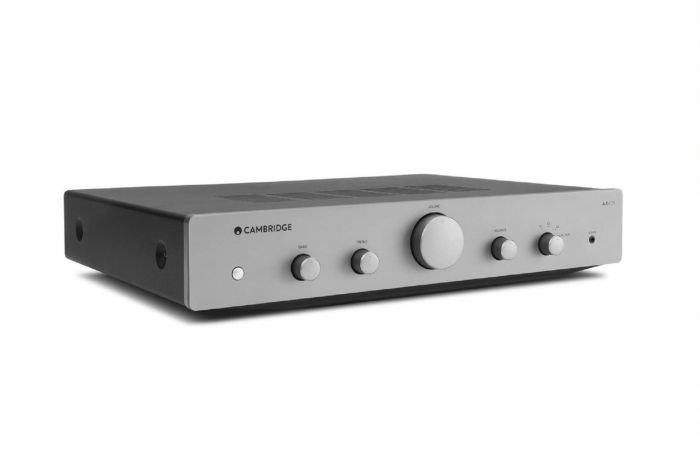

The Cambridge Audio AXA25is a two-channel integrated amplifier that’s rated with a power output of 25-watts per channel into 8Ω and has a frequency response of 10Hz to 30kHz (–3dB). Signal-to-noise ratio is greater than 82dB referenced to 0dBW. It has four analogue line level inputs (via RCA), plus a 3.5mm line-level input on the front panel so you can easily plug in a portable music player or a smart phone.

Cambridge Audio has included bass, treble and balance controls on the front panel, with the bass and treble controls offering a sensibly modest ±5.5dB of boost and attenuation along with proper shelving at 20Hz and 20kHz, so you don’t waste amplifier power or provide excessive power to your tweeters. The AX25 also has a USB output so you can charge your portable while it’s playing.

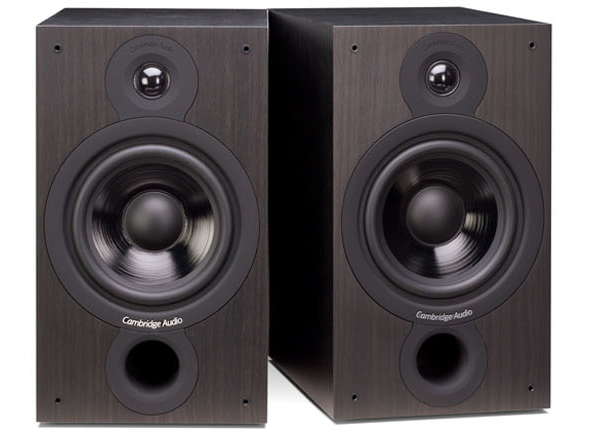

• Optimised woofer magnet systemsdeliver deep, punchy bass.

• Silk dome tweeter combines refined presentation with high levels of detail.

• Foam damper behind the tweeter diaphragm reduces reflections and creates a wide, effortless soundstage.

• 165mm treated paper coneprovides asmooth and even frequency response.

• Precisely optimised crossovers for the most neutral, phase linear response.

• CAD modelled rigid MDF cabinetminimises standing waves and keeps vibration to a minimum.

SENSITIVITY

89dB

FREQUENCY RESPONSE

41Hz - 22 kHz

IMPEDANCE

8 Ohms

RECOMMENDED AMPLIFIER POWER

20-100 watts

DRIVERS

Tweeter: 1 x 25mm (1") silk dome tweeterMid/Bass: 1 x 165mm (6.5") doped paper cone

CROSSOVER

2 way

PORTED

1 front

COLOUR

Black Matte

DIMENSIONS (HXWXD)

340 x 200 x 272mm (13.3 x 7.9 x 10.7")

WEIGHT

5.0kg (11lbs)
